Release notes for the Genode OS Framework 24.02
Version 24.02 focuses on developer experience and framework infrastructure. Genode's Goa SDK has reached prominence in the past few releases. It largely streamlines the porting, development, and publishing of software targeting Genode and Sculpt OS in particular. With the current release, Goa has become able to conveniently use Sculpt OS as a remote test target. Regardless of whether targeting a PC or the PinePhone, either can be turned into a test target in seconds and the developer's compile-test cycle looks exactly the same (Section Sculpt OS as remote test target for the Goa SDK).
A long anticipated infrastructure topic is the rework of Genode's audio stack to accommodate latency-sensitive scenarios, using flexible sample rates, and making audio drivers pluggable. Section Revised audio infrastructure gives an overview of the taken architectural approach, the interfaces, and a low-complexity mixer modelled as self-sufficient resource multiplexer.
Speaking of infrastructure, we are excited to report to have wrapped up the transition to our modern Linux device-driver environment based on Linux 6.x. The last piece of the puzzle was the TCP/IP stack that was still based on code originating from Linux 4.4.3. Section TCP/IP stack based on DDE-Linux version 6.1.20 details the new TCP/IP stack.
According to our road map, we plan to add suspend/resume as feature to Sculpt OS 24.04. As a crucial stepping stone towards this goal, all drivers that cannot be easily restarted must become suspend/resume aware. Section Suspend/resume awareness of GPU, AHCI, and NVMe drivers explains this achievement for the AHCI, NVMe, and Intel GPU drivers.
Further highlights of the release are the much improved handling of HID events including the generalized calibration of motion events, API safety improvements, the prospect of de-privileged tracing in Sculpt OS, and multi-client support for Vivante GPUs.
On our road map, we had scheduled two further topics that are notably absent, namely USB and SMS. But don't fret. Even though the large rework of our USB infrastructure for fine-grained and dynamic USB access has been completed just in time, we felt that this far-reaching change should better not be rushed into the release. It will be merged shortly after, and settle into the upcoming Sculpt OS version 24.04 just fine. The second topic not covered is SMS support for the PinePhone, which is a topic actively worked on but with no user-visible effect until its integration in Sculpt OS in April.
Revised audio infrastructure
After first introduced in version 10.05, Genode's audio support slowly evolved over the years, covering audio mixing in version 10.11, leveraging OpenBSD's audio driver since version 15.05 and offering the OSS interface as VFS plugin since version 20.11. With our recent focus on use cases like VoIP on the PinePhone or video conferencing, however, we identified limitations that cannot be overcome without an architectural revision.
First, in the name of simplicity, we used to tie the inter-component audio interfaces to a fixed sample rate of 44100 Hz. This has recently become a problem because some audio drivers tend to support only 48000 Hz.
Second, in latency-sensitive scenarios, we observed that the existing interfaces were prone to effects caused by the drifting of time between the producer and consumer of audio data. One effect are buffer under-runs, which produce audible noise. The other is the slow accumulation of buffered sample data, which increases latency over time (affecting the effectiveness of acoustic echo cancellation) and yields an audible buffer overrun after a while.
Third, the mixer is a single client of the audio driver, which makes the mixer dependent on the liveliness of the driver. Therefore, the driver cannot be restarted without also restarting the mixer and - transitively - each client of the mixer. The rigid relation between the audio driver and the mixer also stands in the way of routing audio between different audio devices operated by separate drivers.
After having successfully introduced the concept of pluggable drivers for graphics in version 20.08 and applying the same idea to networking in version 21.02, the time was ripe for turning the audio infrastructure upside down.
|
|
original layered architecture (left) compared to the new pluggable architecture (right)
|
The new architecture as shown on the right turns the mixer into a self-sufficient resource multiplexer, which offers a service for playing audio and a service for recording audio. Both audio drivers as well as audio applications are becoming mere clients of the mixer. With this architecture, the dynamic starting, removal, and restarting of the driver, of even multiple drivers, is trivially solved.
To bridge the gap between audio clients operating at different sample rates, the mixer automatically detects and converts sample rates as needed. Both play and record clients are expected to operate periodically. The number of samples produced per period is up to each client and does not need to be constant over time. The mixer infers the used sample rates and periods by observing the behavior of the clients. It measures the jitter of clients to automatically adjust buffering parameters to attain continuous playback while trying to optimize for low latency. Those runtime-measurements can be augmented by explicit configuration values.
Multi-channel playing and recording are realized by one session per channel whereas one channel is used to drive the time allocation while all further channels merely enqueue/obtain data into/from their respective sessions without any synchronous interplay with the mixer.
The mixer routes and mixes audio signals produced by play clients to record clients according to its configuration. Typical play clients are an audio player or a microphone driver whereas typical record clients are an audio recorder or an audio-output driver. A simple mixer configuration looks as follows:
<config> <mix name="left"> <play label_suffix="left"/> </mix> <mix name="right"> <play label_suffix="right"/> </mix> <policy label_suffix="left" record="left"/> <policy label_suffix="right" record="right"/> </config>
This configuration defines two signals "left" and "right" that are mixed from the audio input of the matching <play> clients. In the example, each play session labeled as "left" is mixed into the "left" signal. Each <mix> node can host an arbitrary number of <play> nodes. The same <play> policy can appear at multiple <mix> nodes. A <policy> node assigns a signal to a record client. In the example, a record client labeled "left" is connected to the <mix> signal "left".
The mixer allows for the cascading of <mix> nodes. For example, the following signal "lefty" is a mix of the two signals "left" and "right", weighted by respective volume attributes.
<mix name="lefty"> <signal name="left" volume="0.7"/> <signal name="right" volume="0.3"/> </mix>
|
|

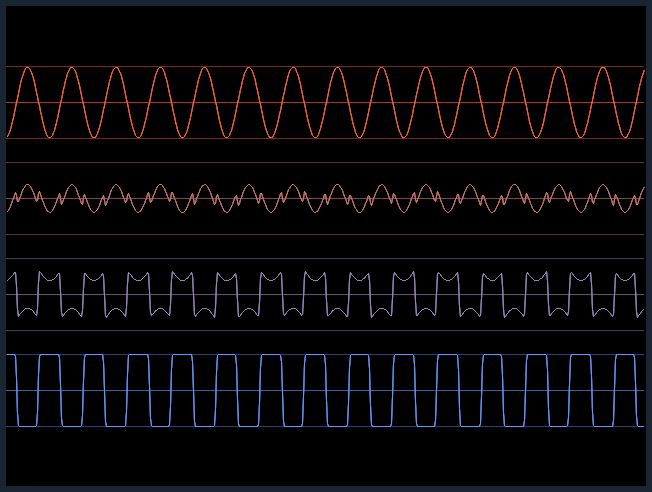

Example of the mixer output for a sine wave as the "left" signal (top), a signal mixed 70:30, a signal mixed 30:70, and a square wave as the "right" signal (bottom).
|
The operation and configuration of the mixer is described in more detail by the accompanied README at os/src/record_play_mixer/. The inter-component interfaces are located at os/include/play_session/ and os/include/record_session/.
The gems/run/waveform_player.run script illustrates the integration of the mixer by using a waveform generator as multi-channel play client and an oscilloscope as record client.
Current state and next steps
The new infrastructure is ready to be exercised by the synthetic example mentioned above as well as by the audio_out.run and audio_in.run scripts located at repos/dde_bsd/run/. The OpenBSD-based audio driver can be operated in either of two modes. By default, it is compatible to the old audio in/out interfaces. The new record/play mode can be enabled by setting the record_play="yes" config attribute. Over the next release cycle, we will successively convert the other pieces of the audio stack, in particular the other drivers and the OSS VFS plugin, to the new record and play interfaces. Following this transition, the original audio in/out interfaces will be removed.
Sculpt OS as remote test target for the Goa SDK
The run-stage generalization from release 23.08, paved the way for the new run-target "sculpt" that allows using Sculpt OS as a remote test target for goa run. Since Goa already placed all the required files for running a scenario into a var/run directory, adding this target merely involved coming up with a solution for synchronizing the run directory with Sculpt OS and getting a hold of the log output. The implementation in Goa is accompanied by a goa_testbed package that starts a remotely-controlled subsystem on Sculpt OS. It particularly hosts a lighttpd and tcp_terminal component. The former is used for run-directory synchronization based on HTTP PUT. The latter provides the log output of the test scenario via telnet. For more details, you may take a look at the corresponding blog post on genodians.org.
In order to integrate support for this mechanism into Sculpt OS, we supplemented the NIC router configuration with a http and a telnet domain. Each of these domains is intended to accommodate a single client. Ports 80 and 23 of the uplink domain are then forwarded to the clients in the http and telnet domain respectively. This is complemented by the goa_testbed preset added to the PC and PinePhone version of Sculpt OS that turns the system into a ready-to-use remote test target. You can see this feature in action in our FOSDEM talks.
When implementing the Sculpt target in Goa, we also had to come up with a way to supply Goa with the IP address of the remote test target. Goa's modularity w.r.t. custom run stages motivated us to implement a generic mechanism for target-specific options. For this purpose, we added the config variable target_opt that is defined as a Tcl array. The Sculpt target evaluates the array elements sculpt-server, sculpt-port-http and sculpt-port-telnet. We further augmented Goa's command-line parsing such that individual elements of the target_opt as well as the version config variables, which are both arrays, can be supplied as command-line arguments. The corresponding arguments follow the pattern --target-opt-<option> and --version-<user>/<type>/<name>.
Base framework and OS-level infrastructure
TCP/IP stack based on DDE-Linux version 6.1.20
Over the course of the previous four releases, we have gradually modernized the arsenal of Linux-based drivers to use our modern Linux device-driver environment based on Linux 6.x. The final piece of code standing in the way of the removal of our legacy DDE Linux approach has been Linux's TCP/IP stack. The stack was based on Linux version 4.4.3 and did not even take advantage of lx_kit supported features like cooperative scheduling.
For this reason, it was about time to update the TCP/IP port while also adapting it to our modern DDE approach. Being in such an ancient state, this effort ended up being more of a re-write than an actual update. The IP stack is also one of the few DDE Linux components that is a shared library, as opposed to most drivers, which are executable binaries. This led to improvements of our lx_kit, for example, we had to replace static C++ constructors by automatically generated functions for kernel module-initialization calls because C++ constructors are supposed to be called by the binary and not during library initialization (Section Linux-device-driver environment (DDE)). Additionally, we took the opportunity of experimenting with a socket C-API with the ultimate goal to replace the VFS plugins for Linux (vfs_lxip) and lwIP (vfs_lwip) with a unified version, but this is an ongoing effort. Nevertheless, with the current release, the update of our Linux TCP/IP port is complete and, from a user perspective, the new version as well as the updated VFS plugin are drop-in replacements for version 4.4.3. The transition should be seamless.
While porting the IP stack, we also investigated a long-standing issue regarding the memory consumption of the IP stack, which always seemed a little too high. We were able to identify the hash tables used for locating sockets as the main reason. These tables are configured for server loads per default (meaning > 1 million sockets), which Genode with one or few (VFS server) clients per IP stack does not default to. This enabled us to reduce the amount of hash table allocations during IP stack initialization, which leads to reduced memory demands (>10MB) of the IP stack.
With the new IP stack in place and no legacy components remaining, we removed the DDE Linux port file (dde_linux.port) and the legacy lx_kit/lx_emul marking the update to the current DDE approach as complete.
De-privileged tracing
Genode got equipped with a light-weight event tracing facility in version 13.08. The underlying core service - appropriately named TRACE - used to be an outlier among core's services in that it provided a privileged interface with system-global reach. A trace client is assumed to play a privileged role and must be ultimately trusted. This is arguably fine for the typical use cases where event tracing is used in the lab. However, anticipating on-target debugging on Sculpt OS, the desire for on-target tracing by untrusted trace monitors casually running on Sculpt OS is anything but far-fetched. To allow for the secure use of untrusted trace monitors, the global reach of core's trace service is no longer satisfactory.
The current release changes core's trace service to expose trace subjects only if their PD label matches up with the label of the trace monitor. Hence, by default, a trace monitor can only observe itself and its child components. Only if the trace monitor's parent rewrites the trace-session's label, the view of the trace monitor can become broader. For example, when rewriting the trace label to an empty string "", the trace monitor becomes able to observe the sibling components hosted in the same init instance as the trace monitor. Note that the trace-subject label as reported as subject info to a trace monitor is now given relative to the label of the trace session.
To grant a trace session the special privilege of obtaining a global system view (including the kernel's trace subjects), the top-level init has to rewrite the session's label to an empty string. At core, this specific label "init -> " is handled as a special case that discharges the namespacing of trace subjects.
In Sculpt OS, the user can now select one of three options when connecting a trace monitor to core's trace service. The "component" option restricts the tracing to the trace monitor itself, the "deployment" option exposes the entire runtime subsystem to the trace monitor, whereas the "system" option exposes the entire Sculpt system to the trace monitor. The latter two options require adequate trust in the trace monitor.
Deferred unlinking of files in VFS RAM file systems
UNIX systems defer the physical deletion of a file until the last file descriptor referring to the file is closed. Since Genode's VFS does not (try to) implement this scheme, we encountered a few difficulties while porting 3rd-party software to Genode. In some situations, a parent process of a Unix-like subsystem may pass the content of an unlinked file to a forked child process. This can be observed when using the exec command in Tcl scripts. Another example is the use of the tmpfile() POSIX function.
In the use cases we observed, the mechanism was merely used for /tmp files, which are usually backed by a <ram> file system in Genode's VFS. Hence, to accommodate these programs, we changed the unlink operation of the ram fs to defer the destruction of a file until it is no longer referenced by any VFS handle. When unlinked, the file no longer appears in the directory. But it can still be opened and accessed.
Improved API safety of MMIO accesses
The Register respectively Mmio APIs have become predominant in Genode's native drivers where the type-safe access to hardware registers has become a second nature. However, up until recently, one point of uncertainty remained: Since the Mmio utility evaluated only the base address of a memory-mapped I/O range, all associated register definitions were assumed to be fully contained within the corresponding local memory mapping. An accidental violation of this assumption would remain undetected.
The current release replaces this optimistic assumption by a combination of two mandatory upper-bounds checks. Each Mmio instance is now qualified with a size_t template parameter denoting the size of the memory-mapped I/O range in bytes. Each register definition within the Mmio is statically checked against this upper bound at compile time. At runtime, the local memory mapping of the I/O range is checked against the statically defined Mmio::SIZE. A violation is considered a non-recoverable driver bug, prompting an error message along with a Range_violation exception.
This change modifies the API. Existing driver code must be adapted in two respects. First, each Mmio definition must be annotated with the expected size in bytes as template argument. Second, the Mmio constructor requires a Byte_range_ptr argument instead of a plain addr_t value.
Application-level VFS file watching
The convenience API at os/vfs.h provides utilities for using the VFS as a stand-alone library without depending on the libc. Among its utilities, there exists the so-called watch handler that can be used to monitor file modifications. As watch handlers were primarily used by VFS plugins and the C runtime, they used to operate in the context of low-level I/O signal handlers. Code executed in this context should generally not involve any global side effects that depend on I/O signals themselves (like synchronous file access).
With the current release, the Watch_handler becomes safe to use at application level where global side effects are anticipated. The former use case is now covered by the dedicated Io::Watch_handler.
Device drivers
Linux-device-driver environment (DDE)
ARMv6 compatibility
In the previous release, we updated our USB device drivers to Linux 6.1.20 using virt_linux. Drivers or protocol stacks based on virt_linux do not access hardware directly. They either communicate through another instance - like the USB host controller for USB device drivers - with the hardware or do not require hardware at all (e.g., TCP/IP, WireGuard).
The virt_linux flavour is still CPU-architecture specific because it contains low-level assembly code. A limitation of Genode release 23.11 was that there is no support for ARMv6 in virt_linux. As devices based on ARMv6 can still be found in the wild (e.g., Raspberry Pi Zero), the current release supplements support for ARMv6 to virt_linux, the USB device drivers, and the TCP/IP stack. For this to work, we had to separate code shared by ARMv6 and ARMv7 platforms. In many places, there would be a directory like spec/arm, which would contain build rules or code for both architectures. ARMv6 and ARMv7 have many things in common - until they don't. With the current release, we have split these folders into arm_v6 and arm_v7 respectively and while we were at it renamed arm_64 into arm_v8 for consistency. With this approach, it became possible to introduce ARMv6 and ARMv7 specific kernel configurations to virt_linux, and thus, enable support for drivers/protocol stacks for both architectures.
Initcall handling without relying on global constructors
When porting Linux drivers, a lot of code is placed into modules. Modules always have a magic module-function call (e.g., module_init), which registers a function for the initialization of the module and is executed during kernel startup prior device probing. DDE Linux mapped module_init indirectly to a macro that generated a function as a static constructor (ctor), which in turn registered the required module function (Note: This is simplified because there is also an order that must be preserved). This solution required all ported components to call exec_static_constructors in order to trigger the registration of module-init calls before executing any other Linux kernel code, but not before the Lx_kit initialization because the init-call functions had to be registered in advance. This scheme led to hen-and-egg problems in our TCP/IP stack (Section TCP/IP stack based on DDE-Linux version 6.1.20) and our WiFi driver port because they are shared libraries where static constructors must be called at a later stage.
In order to avoid these kinds of problems, we changed the module-init approach by replacing the macro-generated functions with global-function pointers with a well known prefix. These pointers are collected by the DDE-Linux-build system using ELF reading tools (i.e., nm) after the compile step and are placed into a function (lx_emul_register_initcalls) which is called during Lx_kit startup. This way, no changes to existing drivers are necessary, and the static constructor problem disappeared for the shared library cases.
Note: Any ported driver still using exec_static_constructors can remove the call after checking if there are no static constructors from other C++ objects present.
Suspend/resume awareness of GPU, AHCI, and NVMe drivers
As a further step towards general ACPI suspend/resume support, our custom-developed drivers for Intel GPU, NVME, and AHCI got re-worked to cooperate with the feature.
Before the final suspend, the drivers can now be notified to stop processing further client data and to shut down the devices used by closing the Platform::Device. This prompts the platform driver to power-off the corresponding PCI device. However, DMA buffers containing all the client data are kept in memory and are not de-allocated. This means that the client sessions for GPU and Block_session can stay intact (for ACPI S3 - suspend to memory) and don't require a restart of the users of GPU, NVME, and AHCI on resume.
On resume, after the kernel is up again, the drivers need to get notified to re-acquire the PCI device from the platform driver. The platform driver will power-on the re-acquired devices and the GPU/NVME/AHCI drivers will set up the device resources, e.g. MMIO and IRQ, and then re-initialize the devices. The drivers will finally restart processing session requests. This way the clients will just continue to operate as though nothing had happened.
The test scenario for suspend/resume can be test-driven by using run/acpi_suspend, which contains a periodic suspend-resume cycle for developing purposes.
Dynamic aperture handling for high resolution framebuffers
We extended the Intel GPU driver with a configuration option to specify the amount of the graphics aperture provided to the ported Intel display driver. Beforehand it was a fixed amount (64M), which may not suffice for all use-cases. The aperture is a shared resource, which must be used for various GPU-related internal data structures and is used from CPU side for access to the framebuffers by the display driver. When the display driver sets up several framebuffers with high resolutions, the fixed amount may be too small. The snippet below shows the new configuration option and the default value:
<start name="intel_gpu_drv" ...>
<resource name="RAM" .../>
<provides>
<service name="Gpu"/>
<service name="Platform"/>
</provides>
<config max_framebuffer_memory="64M">
...
Improved human-interface device handling
In preparation of the support for I2C-based HID (touchpad) devices road-map item, we dusted off several aspects of our input-event handling from the drivers over the event API to the event-filter component. At the heart of the improvements, we developed a broad understanding of the specifics of the different motion-event device types that are widely in use. First, there are mice and touchpads, which generate relative-motion events that are translated by the GUI stack to movements of the GUI pointer. Then, we have three kinds of absolute-motion devices: pointers (e.g., Qemu usb-tablet or IP-KVM device like PiKVM), touchscreens, and graphics-tablet tools (e.g., stylus). These devices require translation of device-specific absolute coordinates to screen coordinates.
On the driver side, we rewrote our custom evdev driver that interfaces with all current and future ported Linux input drivers. Now, evdev covers all peculiarities of the different device types, for example, touch devices that report up to 16 event slots (resp. fingers), and reports them via Genode Event sessions. Also, we implemented minimal "gesture" support for simple tap-to-click for touchpads that could be improved in the future, e.g., by two-finger-scrolling. Based on the rewrite, we could easily enable support for the Magic Trackpad in usb_hid_drv.
The event filter was extended by a filter node to transform touch and absolute-motion event coordinates by a sequence of primitives expressed in sub-nodes, namely translation (move), scaling, rotation, and flipping. For example, the scaling of 32767x32767 touch coordinates to a FullHD screen is configured like follows. All primitives are documented in the event-filter README file.
<transform> <input name="usb"/> <scale x="0.0586" y="0.0330"/> </transform>
Additionally, the event filter now supports to optionally log motion and touch events beside keys and buttons.
<log motion="true"> <input name="usb"/> </log>
Unfortunately, the developments outlined above delayed the actual integration of the prospected I2C HID support to a later release.
Multi-client use of Vivante GPU (i.MX8)
In this release, we brought our port of the etnaviv driver, which was still limited to one client only, up to speed. It now joins the other GPU drivers in providing multi-client support.
Back in release 21.11, we added support for the Vivante GC7000L GPU featured in the i.MX8MQ SoC to Genode via a port of the etnaviv Linux and Mesa3D driver. As a blueprint, it served us well when enabling another GPU for a different ARMv8 SoC, namely the Mali GPU in the PinePhone. The etnaviv port itself, however, never left its initial state and was able to cater to one client only. For this reason it was co-located and deployed in tandem with the client requiring its service. This factor somewhat restricted its usefulness in Sculpt when used in a desktop-like capacity on, e.g., the MNT Reform.
The current release lifts this limitation and enables the driver to accommodate multiple clients at the same time.
Libraries and applications
VirtualBox
As a debugging aid, we enabled the reporting of Windows Blue Screen of Death (BSOD) reasons in our VirtualBox port. To enable the output, the new release adds a default of +dbgf+gim to the VBOX_LOG environment variable. With VirtualBox Guest Additions installed in the Windows guest, after a "Guest indicates a fatal condition!", the reason for the blue screen will be printed to the log.
Seoul VMM
Several improvements got added since the previous Genode release, which showed up during daily use of a Genode developer VM. On the one hand, the exported guest-cursor shape was a bit offset from its actual position. Besides the guest shape, small hot_x, hot_y shifts are exported, which are now considered in order to position the mouse cursor shape more accurately. Additionally, the processing of alt-gr and <>| keys on German keyboard layouts got enabled. Finally, the AHCI model and the bindings to the Genode block session got reworked. Up to now, the AHCI model could not cope with delaying a block request in case the block session was saturated. Instead of making temporary copies, as done before, the AHCI model now supports keeping guest requests in guest memory when necessary and resumes block operations as soon as the block session is able to process more requests.
Lighttpd web server version 1.4.73
We updated our port of the lighttpd HTTP server and at the same time also extended its feature-set by enabling the WebDAV module.
Rather than being used as a general purpose HTTP server that comes with all bells and whistles, it powers our Genodians appliance in static fashion and with WebDAV in place is now also the foundation for the goa testbed introduced in Section Sculpt OS as remote test target for the Goa SDK.
Jitterentropy version 3.4.1
Back in 2014, we ported the jitterentropy library as a basic component-local entropy source for seeding pseudo random-number generators like Xoroshiro or PCG. As the last port update dates back years, we brought the most recent version 3.4.1 of jitterentropy to Genode. The new library is API-compatible to the old version and can be integrated as usual via the <jitterentropy> plugin into your VFS configuration.
Build system and tools
Goa SDK
In addition to the support for using Sculpt as test target for Goa (Section Sculpt OS as remote test target for the Goa SDK), the latter underwent quite a few usability adjustments.
As announced in release 23.08, Goa has been enabled to export and publish a personal depot index. The depot index lists the depot user's packages in a nested structure of <index> nodes. The initial support for index projects, however, was restricted to two levels of <index> nodes. We eliminated this restriction in order to clear the path for large depot indexes with hierarchical structure.
When using Goa to export and publish a depot index, one always had to provide the --depot-overwrite switch in order to overwrite the current depot index. Goa also propagated this switch to any sub-project that got exported along with the depot index. In practice, however, an index project will typically be exported and published when development on all sub-projects has finished, hence there is no need for re-exporting already exported sub-projects. We therefore added the --depot-retain switch in order to express the intent to not overwrite any depot content. Instead of propagating the --depot-overwrite switch, Goa now uses the --depot-retain switch when it automatically exports sub-projects.
Along with the support for index projects, Goa had been equipped with the ability to lookup version information from other project directories. By default, Goa uses the current working directory as a starting point for the lookup of projects and their versions. The practical use of this was still limited, though, since it required using the -C argument to execute Goa from a different directory than the project directory. We thus introduced the search_dir config variable that allows defining the directory from which Goa starts searching for depended on projects.
When porting CMake-based projects with Goa, we often needed to patch the CMakeLists.txt or add quirks to Goa in order to disarm CMake's find_library command. Instead of resorting to those ad-hoc solutions, we decided to add support for FindXXX.cmake files in api archives. Any api archive mentioned in the used_apis file is now added to the CMAKE_MODULE_PATH so that CMake is able to correctly identify the presence of depended on libraries via the FindXXX.cmake files. An example is found in the Goa repository at examples/cmake_sdl2.
In addition to the aforementioned changes, we added a couple of minor tweaks:
-
We added the sub-commands goa help index and goa help runtime to document the structure of index and runtime files.
-
The sub-command goa bump-version now creates a version file if none exists.
Convenient parsing of backtraces
The new tool/backtrace parses the copied and pasted shared library info of a component (generated with <config ld_verbose="yes"/>) and the log output of the Genode::backtrace() function and prints the corresponding source locations in a convenient way.
