Release notes for the Genode OS Framework 23.05

Besides our annual documentation update, our major tool-chain update as scheduled every two years, and the switch to C++20, version 23.05 puts the spotlight on the Goa tool, which allows us to leverage existing SDKs like Lomiri and Rust's cargo for Genode applications. In line with the previous versions, DDE-Linux is prominently featured as enabler of our cross-platform Wifi stack and the updated (6.1.20) drivers for Intel graphics and USB.

Before getting to the technical achievements, we'd like to draw your attention to the books "Genode Foundations" and "Genode Platforms", which have been updated to reflect the most recent state of the framework. Whereas the "Foundations" cover Genode's architecture, developer work flows, and reference material, the "Platforms" document is focused on low-level hardware topics and provides plenty of practical guidance.

Every two years, we update Genode's tool chain to the latest stable releases of GCC and binutils. This time, we took the update as opportunity to switch Genode's default from C++17 to C++20 so that modern C++ niceties can be used for regular Genode components. The new tool chain is covered by Section New tool chain based on GCC 12.3, C++20 enabled by default.

For application developers, the evolving Goa tool is certainly the most interesting feature of the current release. As detailed in Section Goa tool updated to Sculpt OS 23.04, initial support for Rust, this tool enables us to reuse existing SDKs to target Genode. In particular, we enabled the use of the Lomiri mobile UI toolkit (formerly known as Ubuntu Touch UI toolkit) for targeting the PinePhone, and Rust's cargo.

System integrators may appreciate our continued development of the Linux device-driver environment, which received an update to Linux 6.1.20 (Section Device drivers) and ultimately enabled us to use the same Wifi stack across PC and ARM platforms (Section Uniform Wifi stack across PC and ARM platforms).

Even though not end-user facing yet, two noteworthy development milestones of the current release are the new use of our custom base-hw microkernel as x86 hypervisor (Section Base-HW microkernel) and the profound work on storage encryption covered in Section Revision of Genode's custom block-encryption infrastructure. Further topics making an appearance in version 23.05 range from RISC-V, over WireGuard, VirtualBox, to seL4.

Goa tool updated to Sculpt OS 23.04, initial support for Rust
  Using Goa for bringing apps based on the Ubuntu-Touch-UI toolkit to Genode
  Initial Rust support
Uniform Wifi stack across PC and ARM platforms
Base framework and OS-level infrastructure
  New tool chain based on GCC 12.3, C++20 enabled by default
  API changes
  Towards kernel-agnostic DMA protection
  Revision of Genode's custom block-encryption infrastructure
    Tresor library
    File Vault
  Custom virtual machine monitor on ARM
  NetBSD rump kernel on RISC-V
  Strengthened fault tolerance of on-target package management
Libraries and applications
  Qt5 reorganization
  WireGuard improvements
  Updated or removed 3rd-party software
Device drivers
  Linux device driver environment updated to Linux 6.1.20
  Intel display driver
  NVMe storage
  Audio-driver update
  Base-HW microkernel
  Updated seL4 microkernel

Goa tool updated to Sculpt OS 23.04, initial support for Rust

Last month, we released Sculpt OS 23.04 for PC and PinePhone. The new release comes with various usability improvements such as presets and on-target system updates.

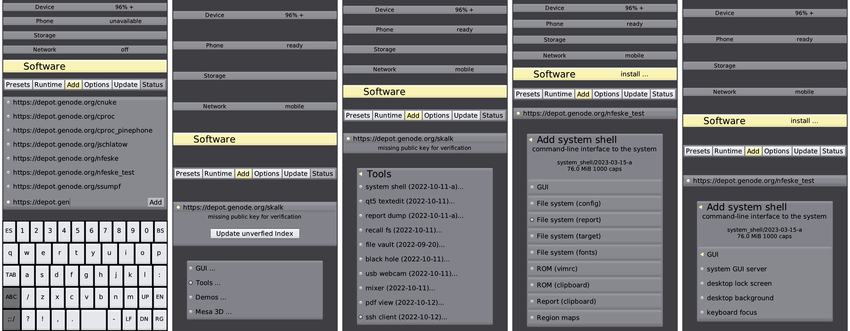

Interactive software management on the mobile variant of Sculpt OS

In particular, with Sculpt OS 23.04 running on the PinePhone, we have carved out the base for hosting mobile apps on a Genode-based system. Yet, there are only very few apps available right now. Since an OS is of no practical use without apps, this urgently called for an SDK to simplify (mobile) app development. After careful investigation, we opted for porting the Ubuntu-Touch-UI toolkit to Genode and integrate it into Goa (Section Using Goa for bringing apps based on the Ubuntu-Touch-UI toolkit to Genode), our streamlined workflow tool for application development. In addition, we integrated initial support for Rust's cargo to make Goa palatable to a broader developer audience (Section Initial Rust support).

The growing attention of the Goa tool prompted us to move it under the umbrella of Genode Labs as we are increasing our development and maintenance efforts for the tool. Aligned with the Sculpt release, the Goa tool has been updated with the corresponding depot archive versions. With this Genode release, we put a cherry on top and added bash completion to improve the user experience even further. Having Goa installed, bash completion is enabled by the following commands:

 goa update-goa master
 GOA_DIR=$(realpath $(which goa) | sed s#bin/goa##)
 echo "source ${GOA_DIR}/share/bash-completion/goa" >> ~/.bashrc

Using Goa for bringing apps based on the Ubuntu-Touch-UI toolkit to Genode

While writing mobile apps might be fun, it is outside our core expertise. Therefore, we have looked into ways of supporting established open-source SDKs for app development on Genode. We investigated two possible options in depth, namely Ubuntu Touch's UI toolkit now called Lomiri and the Sailfish SDK. We have tried to port applications for both stacks and after many iterations settled with the Ubuntu UI toolkit. The full story can be read here. Therefore, a port of the Ubuntu UI toolkit is available on Genode right now and support for it has been added to the Goa tool.

The workflow for crafting an app for the PinePhone using the Goa tool is a fairly streamlined experience now:

  1. Since the UI toolkit depends on Qt5, add "genodelabs/api/qt5" to your used_apis file

  2. Add "ssumpf/pkg/ubuntu_ui_toolkit" to your archives file to have the UI toolkit available within your package

  3. In order to have your QML code within your packet installed, add "<packet-name>.tar: install/" to your artifacts file

  4. Configure your runtime file

  5. Execute your scenario on Linux for development

     goa run
  6. Build for the PinePhone

     goa build --arch arm_v8a
  7. Publish your package

     goa publish --depot-user john --depot-overwrite

Examples using QML, Qt5, and C++ can be found here

Initial Rust support

The Rust programming language has grown in popularity in the recent years. The Genode OS Framework had support for the Rust programming language before, contributed to Genode release 16.05 by Waylon Cude. However, as an on-off contribution it never got traction and the support was eventually removed with release 20.05. While the original support focused on some low-level runtime libraries and integration into the Genode build system, our new attempt has a somewhat different objective, which is to facilitate the use of the existing Rust ecosystem on the Genode OS Framework. The removal note already envisioned a possible comeback using the Goa tool and Rust's cargo build system, for which we have added initial support with this release.

Our objective led to the following guidelines for Rust integration:

  1. Make use of the native build system, cargo, to make the existing ecosystem accessible.

  2. Aim for a seamless integration into the Genode OS Framework using the Goa build tool.

  3. Instead of introducing our own Genode target triples, leverage Genode's FreeBSD-based C library interface to use existing supported standard library targets like x86_64-unknown-freebsd.

  4. Strive to use the upstream tool chain, or at least stay as close to upstream as possible.

While we largely succeeded in following these guidelines, our initial proof-of-concept implementation relies on a marginally adapted tool chain to work around missing support for versioned library symbols in our linker. We are exploring avenues to overcome these limitations and expand the support to cover more complex use cases in the next release.

To learn more about our Rust support, head over to the article on

Uniform Wifi stack across PC and ARM platforms

Support for wireless LAN was mostly focused on the PC platform as it was the platform predominately used for using Genode and, in extension, Sculpt on a daily basis. In the last couple of years, however, we started to embrace ARM-based platforms like the MNT Reform 2 and the PinePhone as well, longing for thorough support of Sculpt OS on such systems. Thanks to our Linux device-driver environment, we have now taken the opportunity to reuse the existing wireless stack on vastly different platforms.

Making the wireless stack globally accessible

The previous release already featured additional support for a different wireless LAN device driver - the rtlwifi driver that supports Realtek-based devices - giving us a good intuition on how easy it has become to extend even a complex Linux-based driver component stack such as our wifi-driver component (wifi_drv).

The first step was making it less x86-centric. We started by making the various ingredients of the driver available on the ARM platforms.

On the one hand, that includes the WPA supplicant and its dependencies like the nl80211 driver that in turn depends on libnl. Enabling them was straight-forward because they are already pretty platform independent and the platform-dependent portions, e.g. libcrypto, are readily available for ARM.

On the other hand, the wireless stack was slightly more complicated because the hardware integration of wireless networking devices on ARM platforms varies from platform to platform. In case of the MNT Reform 2 and PC, the integrated wireless devices are normally connected via PCIe. In contrast, the PinePhone relies on SDIO. We separated the code to allow for a "mix-and-match" way of selecting the necessary compilation units as the used Linux configuration might differ between each target and could result in compilation issues otherwise.

The next step was to make the wireless stack globally accessible by moving it from the pc to the dde_linux repository. This move was motivated by the fact that the dde_linux repository is already available in all platform or rather board-specific repositories while the pc repository is not. It is in itself a board-specific repository and therefore having it appear as dependency for other such repositories feels unnatural.

So the bulk of the driver code now lives in the dde_linux repository from where it can be referenced by other repositories.

While moving the code, we noticed that in contrast to all other Linux-based drivers the wifi_drv is special. Since the binary itself is a libc component, care was taken to isolate the application code, the wpa_supplicant, from the driver code, the library containing the Linux wireless stack and drivers. On all platforms, the binary stays the same while the driver library contains all the platform-specific code. For this reason, the wifi_drv binary is now delegated to be a generic harness that includes all configuration and management functionality shared by all wireless device driver components, e.g., the WPA supplicant. The code of the device driver emulation environment is located in repos/dde_linux/src/lib/wifi. It is referenced by the platform-specific driver library that resides in the corresponding platform repository. The runtime configuration needs to point the driver to a proper driver library.

The platform-specific library is in charge of orchestrating the 3rd-party sources utilized by the driver as well as providing the source.list and dep.list files. It must include the generic library snippet repos/dde_linux/lib/ that deals with managing the emulation environment code. The amount of code added by the platform-specific libraries is unimposing as it mostly consists of the dummy implementations needed by the Linux configuration.

Composition of the wireless LAN driver component

All recipes for the depot archives are prefixed to the specific driver, for example pkg/pc_wifi contains a reference to src/pc_wifi_drv as well as to raw/pc_wifi_firmware.

Thanks to the steps outlined above, we now have three different wireless LAN drivers, one for the PinePhone, one for the MNT Reform 2, and one for the PC that nicely follow the same approach.

New firmware loading mechanism

Additionally to making it easier to enable and use the driver for new platforms, we also refined how the driver loads its firmware images. In the past, the driver contained a list of well-known working firmware images that needed to be updated every now and then when new devices where enabled or the firmware version changed due to a Linux update. In particular using the driver with new devices was cumbersome as the driver itself already supported the device most of the time, but it solely missed the corresponding entry in the firmware list and adding that required recompiling the driver.

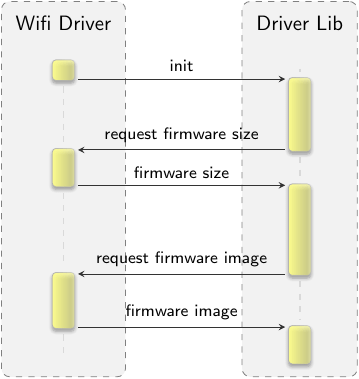

Firmware image loading sequence

So instead, the driver now loads the firmware images via its local VFS rather than requesting a predetermined ROM module. Since the platform-specific driver library has no direct access to the VFS - after all both worlds are intentionally isolated from each other - a request/response interface was added. The library submits a request to the wifi_drv binary and will suspend its execution waiting for the completion of the request. The binary will acquire the firmware image and notify the driver library in return. Streamlining the firmware acquisition in such a manner allows for using the original probing mechanism available in Linux. Rather than following the firmware list the actual driver code is now free to probe as it sees fit, exactly pointing to the required uAPI revision in case the firmware is missing.

The following snippet illustrates the configuration of the driver on the PinePhone (omitting any integration-related routes for the config ROM as well as state and scan reports):

<start name="wifi_drv" caps="250" priority="-1">
  <resource name="RAM" quantum="32M"/>
  <config ld_verbose="yes">
    <report mac_address="true"/>
    <libc stdout="/dev/log" stderr="/dev/log"
          rtc="/dev/rtc" rng="/dev/urandom"/>
      <dir name="dev"> <log/> <null/> <rtc/>
        <jitterentropy name="random"/>
        <jitterentropy name="urandom"/>
      <dir name="firmware">
        <tar name="wifi_firmware.tar"/>
    <service name="ROM" label="">
      <parent label=""/>
    <service name="ROM" label="wifi_firmware.tar">
      <parent label="a64_wifi_firmware.tar"/>
    <service name="ROM" label="dtb">
      <parent label="wifi-pinephone.dtb"/>
    <any-services> <parent/> <any->child/> </service>

In this configuration, the firmware images are provided as a .tar archive that itself is requested via a ROM connection. The driver will always look into the /firmware directory to access any firmware related files. How the directory is populated is up to the integrator of the driver.

As a further simplification step, we removed the need for the firmware library used to contain firmware images. It is superseded by the use of a plain data depot archive, e.g., raw/pc_wifi_firmware.

Additional device support and updates

We updated the firmware images to the most recent ones supported by Linux version 6.1.20.

We enabled the ath9k PCIe driver that can be used on the MNT Reform 2 and the PC. As the ath9k device (168c:0034) used to test the driver on the PC exhibited problems when using MSIs, we disable their usage in the pci_decoder. Similar treatment might be necessary if other ath9k-based devices are used.

The device support in the rtlwifi driver got extended by additionally enabling support for RTL8192CE devices.

Furthermore, we updated the WPA supplicant to its latest v2.10 release and introduce preliminary support for joining networks secured by WPA3.

Base framework and OS-level infrastructure

New tool chain based on GCC 12.3, C++20 enabled by default

Following a regular cycle of two years, we updated our tool chain to recent versions again, this time in particular to GCC 12.3.0, binutils 2.40, and GDB 13.1 while taking the opportunity to enable C++20 by default.

A noticeable change with GCC 12 is that auto-vectorization with the -ftree-vectorize option is now enabled by default when building with the -O2 optimization level. This has the effect that more SIMD instructions are generated, which required adaptations throughout our code base, for example by making sure that memory allocations in ported Linux drivers adhere a suitable address alignment and by saving and restoring ARMv8 FPU registers in the dynamic linker.

In addition to that, GCC 12 reports new warnings and errors, which we had to rectify at various places, the most common ones being:

  • Deprecated arithmetics between different enumeration types,

  • Deprecated use of ++ and -- operators with volatile variables, and

  • Undefined references to strlen inside custom implementations of strlen-like functions, related to the -ftree-loop-distribute-patterns option.

As an extra feature, we added Genode's library name patterns to the linker so that the -l option has become able to find the corresponding libraries. This is useful while porting 3rd-party software based on Autoconf, whenever a configure script checks for a library dependency by linking a test program with this option. This change thereby removes the need for dummy libraries that were formerly used to satisfy the probing.

API changes

As part of Genode's great API revision in 2016, we largely abolished the use of format strings throughout the framework. This is desirable because a code base without format strings cannot have format-string vulnerabilities. Still, a few occurrences, specifically the interface for passing session-construction arguments, remained untouched since then. With version 23.05, we finally attained our initial goal by wrapping up the transition.

In particular, we revised Genode::Connection, which now accepts the session label, affinity, and session-specific parameters as constructor arguments, whereas the parameters are passed as a Genode::String. This eliminates the need for rendering a format string. Given this new interface, we were able to remove format strings from all connection types, updated all components that still happened to rely on format strings, and ultimately removed format strings from Genode's base API.

Format strings still play a role to accommodate 3rd-party code ported to Genode. Whenever the 3rd-party code targets the C runtime, format strings are readily available via the libc. For free-standing ports that avoid the dependency from the full C runtime, e.g., ported device drivers, a new format library based on Genode's former base/snprintf.h and base/console.h provides rudimentary format-string support. The library is hosted in the libports repository.

As another matter of housekeeping, we removed the util/avl_string.h utility. The use case of organizing objects by using strings as keys is covered by the util/dictionary.h now.

Towards kernel-agnostic DMA protection

As sketched in our road map, we plan having a feature-complete PC version of Sculpt OS based on base-hw by the end of this year. One of the reasons why we are still sticking to base-nova for the PC version is the fact that we are relying on NOVA's IOMMU support. One necessary step to decouple Sculpt OS from base-nova is to integrate the IOMMU handling into the platform driver.

Motivated by our custom IP block for DMA protection on AMD/Xilinx Zynq, we integrated the notion of IOMMU-like devices into the platform driver with this release as a preparatory step. The platform driver automatically acquires known IOMMU-like devices for itself by looking at the device types. Other devices can then reference these devices by using <io_mmu> nodes. This is best illustrated by looking at the devices ROM for the Zynq's dma_guard IP block:


   <device type="dma_guard" name="dma_guard_0">
     <!-- [...] -->

   <device type="axi_dma" name="axi_dma_0">
     <io_mmu name="dma_guard_0"/>
     <!-- [...] -->


This tells the platform driver that, whenever a DMA buffer is allocated/freed for the session owning the axi_dma_0 device, the dma_guard_0 must be configured accordingly in order to allow/deny access to the corresponding memory ranges. With the structural changes to the platform driver, the support for dma_guard devices is simply added by implementing specific Io_mmu and Io_mmu_factory objects. You can find the code in the dma_guard.h within the genode-zynq repo.

For the PC version of the platform driver, we implemented a kernel_iommu device that still uses device PDs to pass IOMMU configuration to the NOVA kernel. The kernel_iommu is automatically instantiated and used as a default for each device until we replaced this by a kernel-agnostic implementation in a future release.

With these preparations, we paved the way for implementing configuration logic for arbitrary IOMMU-like devices within the platform driver. In particular, the platform driver has been made capable of managing multiple IOMMU-like devices at the same time. However, there is one limitation that comes from the fact that DMA buffers are not device-specific but allocated per session: All IOMMU-like devices must either operate as MMU (virtual addressing) or as MPU (physical addressing).

Revision of Genode's custom block-encryption infrastructure

Tresor library

For about two years, our Ada/SPARK-based CBE block encryption and its GUI front-end, the file vault, served us well with rather manageable workloads such as configuration and credential files in Sculpt OS on the PC. However, with the rise of mobile Sculpt on the PinePhone, the CBE ecosystem was suddenly confronted with new challenges and requirements.

First, mobile platforms are usually less forgiving when it comes to performance and the CBE still exhibited a lot of potential for optimization. Second, we envision encrypted storage to become an integral part of the base system - the "appliance role" of mobile Sculpt OS - which shifts the role of the component from an optional feature to a foundational mechanism. With this role shift, however, maintainability becomes increasingly important. Third, now that we decided to settle on this block-encryption approach and to increasingly expose it to real workloads, we can expect new requirements to pop up more frequently and with higher priority. Last but not least, our Ada/SPARK runtime, so far, lacks ARM support.

This prospect forced us to carefully reconsider our relation to the existing CBE approach, and especially to the fact that its core logic and crypto back-end were entirely written in Ada/SPARK. When we started developing the CBE in Ada/SPARK, we were positive that the language might become popular among the core developers of Genode and that, eventually, other, especially critical parts of the framework could benefit from it as well. But this idea didn't come to fruition. Only a few of us came in touch with the new language and, of those, even fewer acquired profound experience with it. We ultimately realized that the friction caused by the added language boundary that emerged with the CBE approach became a bottleneck, inhibiting the further evolution of our block-encryption stack with a strong sense of collective code ownership.

This observation in mind, and the above-mentioned challenges in sight, we decided to drop the CBE library and create a new implementation strongly inspired by the CBE design but in C++, our "mother tongue". The new library is called tresor, brings the same feature set as the CBE and is compatible with containers created with the CBE. The file vault has been adapted to run with the tresor library. So file-vault users can continue using their containers as usual without further ado. The entire tresor-based ecosystem is architecture-agnostic, which lifts the former restriction to x86.

File Vault

Some new features have been added to the file vault. For instance, the component can now be driven with one of two available user interfaces: The usual graphical front-end or the new non-interactive interface that is driven by a textual configuration and provides feedback through a report. This allows for the integration of the file vault with automated controls respectively lower or higher-level UIs. The interactive interface remains the default, but one can replace it with the text-based variant using the new "user_interface" configuration attribute. An example of operating the text-based interface is provided by the new script.

As another rather small but handy feature, a file vault can now be locked and unlocked without having to restart the component. In the locked state, all key material is removed from the cryptographic back end and the block-encryption driver is shut down. The user is then prompted to provide the correct credentials in order to re-establish access to the container.

Custom virtual machine monitor on ARM

The previous release, introduced interactive graphical VMs on ARM systems. Genode's custom virtual machine monitor was enhanced by VirtIO device models for input events and GPU. However, dynamic changes of the virtual GPU's framebuffer resolution weren't yet handled by the initial version. With the current release, these restrictions got removed. Now, the user is able to resize the window of a virtual machine as expected.

NetBSD rump kernel on RISC-V

We have added RISC-V to our port of the rump kernel. This enables Genode to access commodity file-systems on RISC-V based devices.

Strengthened fault tolerance of on-target package management

Genode's way of safely installing and deploying packages on-target - as introduced in version 18.02 - is a corner stone of Sculpt OS. The recent move of Sculpt OS to mobile devices, however, revealed a couple of limitations that we address with the current release.

First, in contrast to the PC version of Sculpt OS that allows for the straight-forward management and editing of files using a regular command-line interface, a touch-based user interface as present on the phone is far more constrained. Problems that can be solved by manual intervention on the PC without second thought can become insurmountable showstoppers on the phone. The most prominent problem is recovery from the situation where package dependencies remain incomplete due to an interruption of the installation process or due to packaging mistakes. On the PC, such a situation can be resolved by simply clearing the depot using a single terminal command, followed by a reinstall of the package. On the phone, the user was left out in the cold with the message "package installed but incomplete" but with no obvious or non-obvious way of recovery. The new version gracefully handles this failure state by offering the retry of the package installation.

Second, network connectivity is far more fluctuating on mobile devices, which increases the likelihood for download errors. The previous version that regarded download errors as rare and sporadic issues, responded to such errors by repeated and silent retries. We found that a mobile phone demands a more graceful way to reflect such failure situations to the user, and to limit the rate of futile download attempts. The new version preserves information about download failures for user inspection and re-issues new downloads only if not already flagged as unavailable.

Finally, we encountered the manual addition of software providers to the system as a hurdle on the phone. On the PC, a new software provider can be added by manually placing the provider's download and pubkey files in a local depot directory, which is straight-forward when using a shell. However, on a touch-screen device, there is no obvious and simple way to supplement the system with such information. To still accommodate the user's desire to download and install software from arbitrary providers, we added the option to explicitly skip the signature verification for downloads. This is useful in scenarios where the lack of integrity of downloaded content does not pose a risk, e.g., for untrusted applications that are rigidly sandboxed, or during development.

Whenever the depot-download subsystem encounters the attribute verify="no" for an <installation> item, it accepts the installation even if no key is available. It still applies verification for dependencies whenever possible. E.g., if a package of the provider "john" gets installed via verify="no" and the package depends on an archive by "genodelabs", for which the public key is known, the integrity of the content originating from "genodelabs" is verified.

Libraries and applications

Qt5 reorganization

When the Goa tool is used to build an application, all libraries of the used API packages get linked to the application and the single Qt5 API package with big libraries like QtWebEngine was a bit too much for simple Qt applications. For this reason, we split the Qt5 API into smaller packages according to the corresponding Qt modules.

As preparation for the release of a binary version of the Qt5 host tools, we also reduced the external dependencies of these tools for improved compatibility with different host systems and changed their install location to the location of the other Genode host tools.

And finally, we added a ubuntu-ui-toolkit meta package in the genode-world repository which pulls in all dependencies for the Ubuntu UI toolkit, including a runtime with the required ROMs.

WireGuard improvements

There are two smaller changes related to Genode's port of WireGuard. First, peers can now be removed from WireGuard at runtime by removing the corresponding <peer> tags from the component's configuration. This operation enforces the same assurances as removing a peer from a native WireGuard driver in Linux.

The second change has to do with the nature of the port. The WireGuard port is one of the rare examples where we use our Linux device driver environment (dde_linux) for porting software that is not exactly a driver. The component does not depend on a specific hardware configuration and therefore, the emulated Linux kernel can be platform-agnostic. Consequently, while porting, we created such a variant of the Linux emulation specifically for WireGuard.

However, we realized that this variant can come in handy for ports of other hardware-agnostic kernel parts (for instance, lxip) as well. Therefore, we now cut it out of the WireGuard port in order to make it a self-contained version of the lx_emul library. The new library is called virt_lx_emul and is accompanied by the virt_linux target that can be used to build the corresponding Linux kernel and run it in Qemu.

Updated or removed 3rd-party software

VirtualBox updated to version 6.1.44

Our port of VirtualBox underwent some maintenance work published in this release. With the tool chain updated to GCC 12, it became necessary to update VirtualBox to version 6.1.44 to keep up with the tool-chain changes and fix many upstream bugs alongside. Also, we improved several aspects of the port to improve robustness of networking, USB, multi-threading, and VM reboot. After thorough testing in every-day scenarios, we finally adopted the handling of the x86 time-stamp counter from version 5 and disabled the VM exit for the RDTSC instruction, which improves the performance of selected scenarios significantly. For Windows guests, it has become crucial to configure the paravirtualization provider like follows in the machine.vbox6 file. Otherwise, the guest's TSC calibration fails resulting in a bogus CPU frequency assumption.

 <Paravirt provider="HyperV"/>

Removed ports of pcre16 and icu libraries

The pcre16 and icu libraries had been used by Qt5 in the past but were not used anymore since the last Qt updates. So we removed them from the libports repository.

Device drivers

Linux device driver environment updated to Linux 6.1.20

According to our roadmap, the update of Genode's Linux device driver environment (DDE) to a more recent 6.x Linux version was planned for release 23.08. Now, we decided to tackle this update with this version already.

Besides the Wireguard port to Genode, the following ported drivers use the latest Linux kernel 6.1.20 version now:

  • Zynq SD-card driver

  • PCI Wifi driver for i.MX 8MQ

  • all PC drivers (USB host, Wifi, Intel display)

Note that a few drivers are not listed above. The existing drivers for the Allwinner and i.MX 8MQ SoC still use older 5.x Linux kernel versions as base. However, the Linux device driver environment has been tweaked carefully to support a range of Linux kernel versions from 5.11 till 6.1.20.

While doing the update work, we investigated a more sustainable link between the Linux kernel drivers for USB and display drivers (DRM/KMS) on the one hand, and the Genode API on the other. The outcome is explained in the next two sections.

Intel display driver

During the update of DDE Linux to the Linux 6.1.20 version, the dependency on internal structures of the Intel framebuffer driver (intel_fbdev) became a hassle. Although the update was successful finally, we decided to remove the direct usage of intel_fbdev in our ported Intel display driver, in order to ease future updates. Nevertheless, the functionality of intel_fbdev is required to manage the framebuffer memory to provide a working Genode GUI interface by the driver. For that, we investigated the use of the Linux DRM/KMS interface, specifically to allocate and manage so called dumb buffer objects. As described in the linked article, the dumb buffers are a standardized and streamlined way to make early boot graphics possible driven by user-land tools. We adjusted our port along the ioctl's of the dumb buffer functionality to manage the framebuffer in our ported display driver.


Connecting different USB clients to a USB host controller driver is a delicate task. When using a port of a Linux kernel driver, it can quickly become brittle because the USB driver API in the Linux kernel is complex and contains some semantic dependencies, for instance regarding synchronization, which are not always obvious. However, the Linux kernel offers a USB device I/O API to the user-land that is used for instance by libusb. This API has to guard the USB subsystem against wrong usage, and implements the necessary semantics regarding synchronization and dynamic changes of clients and devices. In the past, we repeatedly encountered corner-case issues, if clients or devices vanished and appeared at a high rate. For the sake of robustness, we decided to redesign our internal linking in between the Genode USB API and Linux to use the user-level device I/O API of the latter. Moreover, we extended the capacity of USB packets in-flight that can be handled by the controller in parallel to 32, to enhance the throughput for some USB devices.

NVMe storage

Our custom NVMe driver received the following improvements. First we added host-memory-buffer (HMB) support to the driver, which is a performance optimization for NVMe devices that do not make use of a DRAM cache for its operational data.

The amount of memory used for the HMB can be set by adding the max_hmb_size attribute in the <config> node of the driver. This value is checked against the constraints imposed by the device. Should the value be less than the minimal required amount of memory, it will not be used and a warning is issued. On the other hand, if the specified value is larger than the preferred amount of memory as favored by the device, it will be capped to the useful amount instead.

Naturally, when using the HMB, the required RAM quota of the driver component increases by that amount.

Second, we fixed a problem detecting the block size (LBA format) of a given namespace. The lower 4 bits of the FLABS register indicate which of the (up to) 16 supported LBA formats is used by the namespace. However, instead of only making use of those bits, the driver looked at the whole register that also includes other information. This led to using the wrong index for reading the LBA format and, on certain devices, rendered the driver unusable as the assumed block size was detected wrong.

Audio-driver update

We updated the audio driver for HDA devices ported from OpenBSD to version 7.3. The functional changes are minimal, but the new version supports more recent PC platforms and recognizes more codecs.


Base-HW microkernel

Principle x86 virtualization support (on Qemu)

This release brings limited support for AMD's Secure Virtual Machine (SVM) vCPUs to Genode's custom base-hw microkernel. Supporting SVM is meant as an intermediate step towards enabling advanced virtualization workloads using VirtualBox on Intel VMX later this year. The approach allows us to craft the kernel's virtualization infrastructure using Qemu - which is able to emulate SVM in software - and cross-test our implementation against other hypervisors in a tightly controlled setting. For reference, we used the time-tested Qemu version 4.2 for this line of work.

Implementing principle vCPU support revealed a few points of friction between base-hw's kernel interface, which had been designed for the needs of our custom ARM VMM, and our kernel-agnostic VM interface on x86 that has been carefully crafted to support a range of 3rd party hypervisors, but relies on more logic in the kernel-specific VMM library to manage the vCPU state.

The current implementation is able to run several test VM workloads like the artificial vmm_x86 test, our seoul VMM run scripts with Linux, and - of course - Genode VMs on one vCPU. It has thereby reached an important stepping stone towards our actual goal of hosting VirtualBox on Intel hardware.

Having shown that base-hw can support the generic x86 VM interface, we will mature our implementation and may adapt our interface to make it a better fit to base-hw's vCPU execution model in the future.

Boot-time RAM detection on the PinePhone

For the PinePhone, we implemented dynamic detection of the system RAM size by parsing the values of the DRAM controller as programmed by U-Boot. This way, 2 and 3 GB models of the PinePhone are supported by Genode.

Updated seL4 microkernel

With this release, we updated the support of the seL4 kernel from 9.0.1 to 12.1.0 for i.MX6 Sabrelite board and x86_64 PC. The support for 32-bit PC got removed since it is unused, and the i.MX7 Sabrelite support got removed since it is not supported by the new seL4 kernel anymore.

The updated seL4 kernel requires additional host tools installed, namely CMake, Ninja and additional Python3 modules, jinja2, jschonschema, and pyfdt. Depending on the distribution, the modules are available as distribution package or need to be installed with the python pip3 tool.
