Release notes for the Genode OS Framework 23.11

Genode 23.11 brings a healthy mix of OS architectural work, curation of the existing framework, and new features. In an arguably radical move - but in perfect alignment with microkernel philosophy - we move the IOMMU driver from the kernel to user space. This way, Genode attains DMA protection independent of the used kernel. Section Kernel-agnostic DMA protection covers the background and implementation of this novel approach.

We constantly re-evaluate our existing code base for opportunities of curation and simplification and the current release is no exception. It bears the fruit of an intense one-year cross-examination of Genode's existing virtualization interfaces across CPU architectures and kernels, as a collateral effort of bringing x86 virtualization to our custom base-hw microkernel. Section Modernized virtualization interface presents the story and outcome of this deep dive.

As another curation effort, the release brings Genode's arsenal of USB device drivers in line with our modern DDE Linux porting approach. Section USB device drivers updated to Linux 6.1.20 details this line of work.

Feature-wise, the release contains the underpinnings of the CPU frequency/temperature/power monitoring and control feature of the latest Sculpt OS release (Section PC power, frequency, temperature sensing and control), showcases the port of the Linphone VoIP stack using the Goa tool (Section Ported 3rd-party software), and equips the Seoul virtual machine monitor with the ability to host 64-bit guests (Section Seoul virtual machine monitor).

Kernel-agnostic DMA protection
Base framework and OS-level infrastructure
  PC power, frequency, temperature sensing and control
  Modernized virtualization interface
  Dialog API for low-complexity interactive applications
  API changes
    Simplified list-model utility
    Pruned IRQ-session arguments
Libraries and applications
  Seoul virtual machine monitor
  Ported 3rd-party software
Device drivers
  USB device drivers updated to Linux 6.1.20
Build system and tools
  Debug information for depot binaries
  Decommissioned implicit trigger of shared-library builds

Kernel-agnostic DMA protection

On our quest towards a PC version of Sculpt OS on our custom (base-hw) microkernel, we were able to move an essential chunk away to clear another section of the path. Based on the preparatory changes to the platform driver regarding IOMMU handling introduced in release 23.05, we were able to enable kernel-agnostic DMA protection on Intel platforms.

Similar to how the MMU protects the system against unintended CPU-initiated memory transactions, the IOMMU protects the system against unintended DMA transactions. Since components allocate DMA buffers via the platform driver, the latter sits in the perfect spot to manage DMA remapping tables for its clients and let the IOMMU know about them.

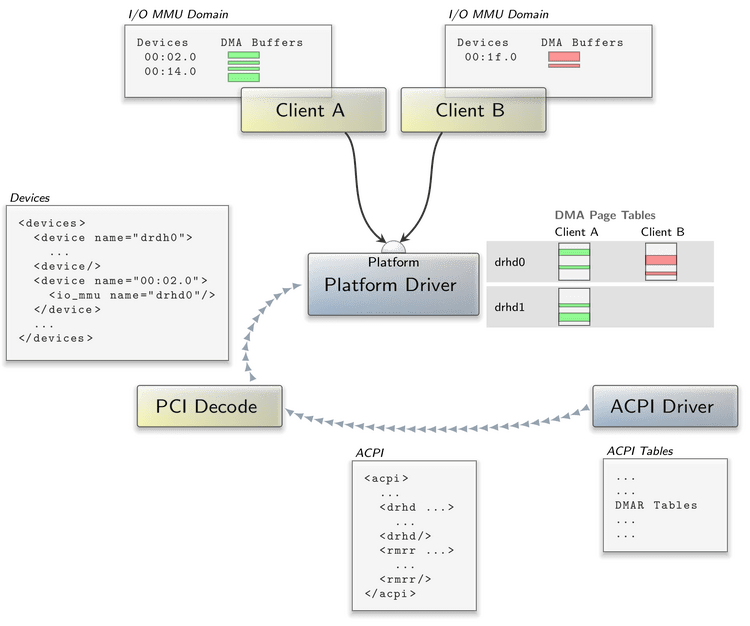

The figure above illustrates how we added remapping to the PC version of Sculpt OS. IOMMUs are announced in the ACPI DMAR table, which is parsed by our ACPI driver component. It particularly evaluates the DMA Remapping Hardware Unit Defintions (DRHDs) and Reserved Memory Region Reporting (RMRRs) structures and reports the essential details in form of an acpi report. There are typically multiple DRHDs with different device scopes. The RMRRs specify memory regions that may be DMA targets for certain devices.

The acpi report is used by our PCI decode component, which creates a devices report. It adds the DRHDs as devices to this report and annotates the found PCI devices with corresponding <io_mmu name="drhdX"/> nodes according to the DRHDs' device scopes. Moreover, it adds <reserved_memory .../> nodes to the particular devices as specified by the RMRRs.

By evaluating the devices report, the platform driver has a complete picture of the DMA remapping hardware units and knows about which PCI devices fall into their scopes. It takes control over the mentioned drhdX devices on its own and sets up the necessary structures that are shared between all sessions and devices. For every Platform session and drhdX device used, it creates an Io_mmu::Domain object that comprises a DMA remapping table. As shown in the figure, Client A, which acquires devices in the scope of drhd0 and drhd1, the platform driver sets up two DMA remapping tables. The tables are populated with the DMA buffers allocated via Client A's platform session. For every acquired device, the platform driver maps the corresponding remapping table. Note that DMA buffers are allocated on a per-session basis so that all devices in the same session will get access to all DMA buffers. To further restrict this, Client A could open separate platform sessions for distinct DMA-capable devices.

A subtle implementation detail (not shown in the figure) concerns the aforementioned reserved memory. The reserved memory regions of a device must be added to the corresponding DMA remapping table. Moreover, these regions must be accessible at all times, i.e. even before the device is acquired by any client. For this purpose, the platform driver creates a default remapping table. This table is filled with the reserved memory regions and mapped for every unused device that requires access to any reserved memory region.

A particular benefit of moving DMA remapping into the platform driver (apart from becoming kernel-agnostic) is that DMA remapping tables are now properly allocated from the session's quota. In consequence, this may increase the RAM and capability requirements for certain drivers.

The platform driver's support for Intel IOMMUs is enabled by default on the NOVA and base-hw kernels. The seL4 and Fiasco.OC kernels are not yet covered. Nevertheless, we also kept NOVA's IOMMU enablement intact for the following reasons:

  • To protect the boot-up process from DMA attacks, the IOMMU should be enabled as early as possible. The platform driver simply takes over control when it is ready.

  • The platform driver is not (yet) able to manage interrupt remapping because this requires access to the I/O Advanced Programmable Interrupt Controller (IOAPIC) controlled by the kernel. Thus, in this release, we still let NOVA manage the interrupt remapping table.

  • As we have not implemented support for AMD IOMMUs yet, we simply keep NOVA in charge of this. If there is no Intel IOMMU present, the platform driver falls back to the device PD for controlling the kernel-managed IOMMU.

Along with the DMA remapping support, we added an iommu report to the platform driver. On the PC version of Sculpt OS, this is enabled by default and routed to /report/drivers/iommu. The report summarizes the state of each DRHD. When the platform driver takes control, it also logs a message like "enabled IOMMU drhd0 with default mappings". The platform driver can be prevented from touching the IOMMU by removing the DRHD info from the acpi report. This can be achieved by supplying the ACPI driver with the following config:

 <config ignore_drhd="yes"/>

Note that the ACPI driver does not handle configuration updates.

Orthogonal to the DMA remapping support, we changed the allocation policy for DMA buffers in the generic part of the platform driver. The new policy leaves an unmapped page (guard page) between DMA buffers in the virtual I/O memory space. This ensures that a simple DMA buffer overflow does not corrupt other DMA buffers. Since this is only a matter of virtual address allocation, it does not add any additional RAM costs.

Base framework and OS-level infrastructure

PC power, frequency, temperature sensing and control

PC CPU vendors provide various CPU features for the operating system to influence frequency and power consumption, like Intel HWP or AMD pstate to name just two of them. Some of the features require access to various MSR CPU registers, which can solely be accessed by privileged rdmsr and wrmsr instructions.

Up to now, this feature was provided in a static manner, namely before Genode boots. It was possible to set a fixed desired target power consumption via the pre-boot chain loader bender. This feature got introduced with Genode version 20.11 and was refined in version 22.11.

Another and desired approach is to permit the adjustment of the desired power consumption depending on the current load of the system. This dynamic way of power and frequency management has been in casual development since 2021 and first got presented in one sneak peak Genodian article. The feature now found its way into the Sculpt 23.10 release.

With the current Genode release, we have added general support to the framework that permits guarded access to selected MSRs via Genode's system-control RPC of the protection domain (PD) session. If the underlying kernel supports this feature, presently the NOVA kernel, read and write requests are forwarded via Genode's core roottask to the kernel. A component needs the explicit managing_system configuration role to get access to this functionality, which is denied by default.

The actual knowledge about how to manage Intel HWP and AMD pstate is provided as a native Genode component, which uses the new Pd::system_control interface. The component monitors and reports changes of MSR registers for temperature (Intel), frequency (AMD & Intel), and power consumption (Intel RAPL). Additionally, it can be instructed - by the means of configuration changes - to write some of the registers. Besides the low-level MSR component, a Genode package with a GUI component is provided to make the interactive usage of the feature more user-friendly. For Sculpt, we added an interactive dialog to assign the system-control role to a component like the graphical MSR package via the resource dialog. For a more detailed description please refer to our Genodians article for the Sculpt 23.10 release.

Modernized virtualization interface

When we introduced the generic Virtual Machine Monitor for x86 virtualization with Genode version 19.05, it was largely modeled after our Genode VMM API for ARM with the following characteristics.

  • A vCPU's state could be requested, evaluated, and modified with the state() method.

  • The vCPU was started by the run() method.

  • For synchronization, the vCPU could be stopped with the pause() method.

However, this ostensibly uniform interface for ARM and x86 virtualization obscures two significant differences between the architectures.

Hardware and generic vCPU state

On ARM, the VMM directly handles the hardware virtualization state, i.e., the vCPU state is directly passed to the VMM. In contrast, what is passed to the VMM on x86 is a generic Vcpu_state. This is due to two aspects of x86 virtualization: First, there are two competing implementations of virtualization on x86: AMD's Secure Virtual Machine (SVM) / AMD-V and Intel's Virtual Machine Extensions (VMX). Second, neither interface lends itself to passing the vCPU state directly to the VMM: VMX requires privileged instructions to access fields in the _Virtual Machine Control Structure (VMCS)_. Whereas SVM supports direct access to fields in its _Virtual Machine Control Block (VMCB)_, the VMCB (as well as the VMCS) does not represent the whole state of the vCPU. Notably, both the VMCS and the VMCB do not include the CPU's general purpose registers, thereby warranting a separate data structure to synchronize the vCPU state with a VMM.

vCPU pause and state synchronization

On ARM, the pause() method simply stopped the vCPU kernel thread from being scheduled. Since the VMM's vCPU handler runs on the same CPU core we could be certain that the vCPU was not running while the VMM's vCPU handler was executing, and calling pause() made sure the vCPU wasn't rescheduled while the VMM was modifying its state. In contrast, calling pause() on x86 has different semantics. It requests a synchronization point from the hypervisor, which responds by issuing a generic PAUSE or RECALL exit in order to signal the VMM that state can be injected into the vCPU. The mechanism is woven deeply into the device models of our x86 VMMs, and therefore asynchronous state synchronization from the VMM needed to be available in the VMM.

API shortcomings and improvements

On ARM, making the hardware vCPU state unconditionally available to the VMM via the state() method meant that the API did not enforce any synchronization between hypervisor / hardware and VMM accesses to the vCPU state. On x86, the asynchronous semantics of the pause() method required complex state tracking on the hypervisor side of the interface.

To address both shortcomings, we replaced the previous API with a single with_state() method that takes a lambda function as an argument. The method allows scoped access to the vCPU's state and ensures that the vCPU is stopped before calling the supplied lambda function with the vCPU as parameter. Only if the lambda function returns true, the vCPU is resumed with its state updated by the VMM. Otherwise, the vCPU remains stopped.

As a result, the API enforces that the vCPU state is only accessed while the vCPU is not running. Moreover, we were able to replace the ambiguous pause() method by a generic mechanism that unblocks the vCPU handler, which in turn uses the with_state() method to update the vCPU state. Finally, resuming of the vCPU is controlled by the return value of the lambda function exclusively and, thus, removes the error-prone explicit run() method.

Porting hypervisors and VMMs

The new API was first implemented for *base-hw*'s using AMD's SVM virtualization method and recently introduced as part of the 23.05 release. The reduction of complexity was significant: explicitly requesting the vCPU state via with_state() did away with a vast amount of vCPU-state tracking in the kernel. Instead, the VMM library explicitly requests updates to the vCPU state.

With the first hypervisor ported, we were curious to see how easily our new interface could be applied to the NOVA hypervisor. The initial pleasant reduction of complex state handling in base-nova's VMM library was closely followed by the insight that there was no way to match the NOVA-specific execution model to our new library interface. The asynchronous nature of the with_state() interface meant that we needed a way to synchronize the vCPU state with the VMM that could be initiated from the VMM. Since NOVA's execution model is based on the hypervisor calling into the VMM on VM exits, we had to extend NOVA's system call interface to allow for an explicit setting and getting of the vCPU state. This was needed because the with_state() interface requires that the vCPU state is made available to the caller within the method call, so the old model of requesting a RECALL exit that would be processed asynchronously couldn't be used here. For the same reason, the vCPU exit reason had to be passed with the rest of the vCPU state in the UTCB since in this case this information wasn't provided through the VMM portal called from the hypervisor. The new ec_ctrl system call variants proved to be a simple addition and allowed us to adapt to the new interface while still using NOVA's execution model for processing regular exits.

The blocking system call into the hypervisor execution model of Fiasco.OC and seL4 offered its own unique set of challenges to the new library interface in the interplay between asynchronous with_state() triggers and the synchronous vCPU run loop. Fortunately, we were able to meet these challenges without changing the kernels.

While adapting our VMMs for ARM and x86, we found varying degrees of dependency on permanently accessible vCPU state, which we resolved by refactoring the implementations. As a result, the new interface is already used since the release of Sculpt OS 23.10. We haven't experienced any runtime vCPU state access violations and can now be certain that there aren't any silent concurrent accesses to the vCPU state.

All in all, the new VMM library interface has succeeded in reducing complexity while providing a more robust access to the vCPU state, which is shared between our various hypervisors and VMMs.

Dialog API for low-complexity interactive applications

Since version 14.11, Genode features a custom UI widget renderer in the form of a stand-alone component called menu view. It was designated for use cases where the complexity of commodity GUI tool kits like Qt is unwanted. Menu-view-based applications merely consume hover reports and produce dialog descriptions as XML. In contrast to GUI toolkit libraries, the widget rendering happens outside the address space of the application.

Today, this custom widget renderer is used by a number of simple interactive Genode applications, the most prominent being the administrative user interface of Sculpt OS. Other examples are the touch keyboard, file vault, text area, and interactive system monitoring tools.

In each application, the XML processing used to be implemented via a rather ad-hoc-designed set of utilities. These utilities and patterns started to get in the way when applications become more complex - as we experienced while crafting the mobile variant of Sculpt OS. These observations prompted us to formalize the implementation of menu-view based applications through a new light-weight framework called dialog API. The key ideas are as follows.

First, applications are to be relieved from the technicalities of driving a sandboxed menu-view component, or the distinction of touch from pointer-based input, or the hovering of GUI elements. These concerns are to be covered by a runtime library. The application developer can thereby focus solely on the application logic, the UI representation (view) of its internal state (model), and the response to user interaction (controller).

Second, the dialog API promotes an immediate translation of the application's internal state to its UI representation without the need to create an object for each GUI element. The application merely provides a view (const) method that is tasked to generate a view of the application's state. This approach yields itself to the realization of dynamic user interfaces needing dynamic memory allocation inside the application. The view method operates on a so-called Scope, which loosely corresponds to Genode's Xml_generator, but it expresses the generated structure using C++ types, not strings. A scope can host sub scopes similar to how an XML node can host child nodes. Hence, the view method expresses the application's view as a composition of scopes such as frames, labels, vbox, or hbox.

Third, user interaction is induced into the application by three callbacks click, clack, and drag, each taking a location as argument. The location is not merely a position but entails the structural location of the user interaction within the dialog. For interpreting of the location, the application uses the same C++ types as for generating the view. Hence, the C++ type system is leveraged to attain the consistency between the view and the controller, so to speak.

Fourth, structural UI patterns - made out of nested scopes - can be combined into reusable building blocks called widgets. In contrast to scopes, widgets can have state. Widgets can host other widgets, and thereby allow for the implementation of higher-level GUI parts out of lower-level elements.

The API resides at gems/include/dialog/ and is accompanied by the dialog library that implements the runtime needed for the interplay with the menu-view widget renderer. Note that it is specifically designed for the needs of Sculpt's UI and similar bare-bones utilities. It is not intended to become a desktop-grade general-purpose widget set. For example, complex topics like multi-language support are decidedly out of scope. During the release cycle, the administrative user interface of Sculpt OS - for both the desktop and mobile variants - has been converted to the new API. Also, the text-area application and the touch keyboard are using the new API now.

Given that the new API has been confronted with the variety of use cases found in Sculpt's administrative user interface, it can now be considered for other basic applications. Since we target Genode-internal use for now, proper documentation is still missing. However, for the curious, an illustrative example can be found at gems/src/test/dialog/ accompanied by a corresponding script. For a real-world application, you may consider studying the app/sculpt_manager/view/ sub directory of the gems repository.

API changes

Simplified list-model utility

The so-called List_model utility located at base/include/list_model.h has become an established pattern used by Genode components that need to maintain an internal data model for XML input data. It is particularly useful whenever XML data changes over time, in particular when reconfiguring a component at runtime.

The original utility as introduced in version 18.02 relied on a policy-based programming pattern, which is more ceremonial than it needs to be, especially with recent versions of C++. The current release replaces the original policy-based update_from_xml by a new method that takes three functors for creating, destroying, and updating elements as arguments. XML nodes are associated with their corresponding internal data models by annotating the element type with the type_matches class function and the matches method.

Besides the interface change, two minor aspects are worth noting. First, to improve safety, list model elements can no longer be copied. Second, to foster consistency with other parts of Genode's API, the apply_first method has been renamed to with_first.

Pruned IRQ-session arguments

So far, we have used the device_config_phys argument of the IRQ session to implicitly request the use of Message-Signalled Interrupts (MSI) to core. This argument specifies the address to the PCI configuration space. However, with the addition of Intel IOMMU support to the platform driver, we encountered an instance where we need an MSI for a non-PCI device in order to receive fault IRQs from the IOMMU. We therefore added an irq_type argument to the IRQ session, which allows the explicit specification of whether a LEGACY interrupt or an MSI is requested.

Yet, as we exceeded the character limit by adding another argument, we pruned the IRQ-session arguments: Since device_config_phys is not relevant for LEGACY interrupts, we removed this from the default Irq_connection constructor. We further added an alternative constructor for MSI, which sets device_config_phys but omits the irq_trigger and irq_polarity arguments.

Libraries and applications

Seoul virtual machine monitor

The Seoul/Vancouver VMM - introduced to Genode with release 11.11 - is an experimental x86-based VMM which runs on Genode@NOVA, Genode@seL4, and Genode@Fiasco.OC, and Genode@hw on Intel and on AMD hardware. It has been up to now solely used with 32-bit and special crafted VMs. With the addition of VirtIO support for GPU, input, and audio, the usage as specialized tailored disposable VMs became quite comfortable.

However, time is ticking for 32bit on x86 and some features aren't provided in the same quality as for 64bit VMs. For example, when using Firefox on 32bit, the video playback on some webpages gets denied while functioning on 64bit without complaints. So, the time came to extend the Seoul VMM by 64bit guest support to make it fit for today and avoid further hassles.

Over the year 2023, the Seoul VMM got extended by enabling the instruction emulator - called Halifax - to decode x86_64 instructions with additional prefixes and additional 8 general purpose registers. Besides the necessary deep dive through this special topic, the Seoul VMM required extensions to handle more than 4G guest physical memory. Several changes to the guest-memory layout handling and the memory-layout reporting, e.g., VBios e820, were necessary.

Once an early prototype successfully booted a 64bit Linux kernel, we found the initial user task of some Linux distributions to fail by complaining about unsupported CPUs. As it turned out, glibc-based software (and later also llvm-based) have several detection mechanism to identify the running CPU - and if they feel uncomfortable, deny to work. So, we had to extend the support to report more of the native CPUID values of the host and as an after-effect, have to emulate more MSR accesses as performed by 64bit Linux guests. Unfortunately, the MSRs between Intel and AMD differ in subtle ways, so a per CPU differentiation became necessary in the vCPU model.

Additionally, during testing of the native 64bit Debian VM installation with the Seoul VMM, several improvements during early boot, especially for the interactive usage of the GRUB bootloader were made. Ready to use packages to test drive the 64bit Seoul VMM on Sculpt OS are available via the "alex-ab" depot.

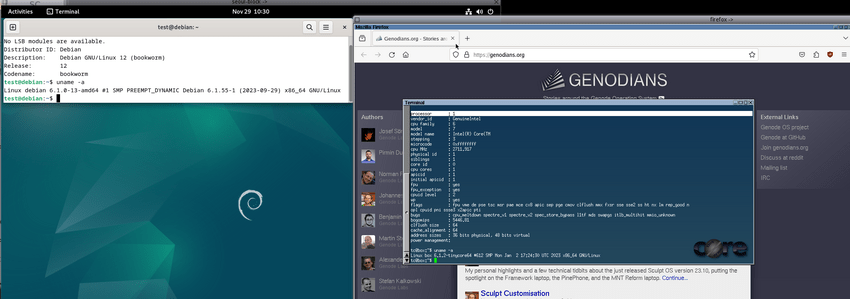

Two instances of the Seoul VMM executing 64-bit Linux

Ported 3rd-party software

Linphone SIP client

Sculpt on the PinePhone used to provide only support for making and receiving regular phone calls but did not yet provide any VoIP functionality. Now, the "Linphone Console Client" and the "SIP Client for Ubuntu Touch" got ported to Genode to expand the available features on the PinePhone when it comes to mobile communication.

We decided to port the Linphone-SDK, the console client in particular, to Genode because it seems to be a time-tested solution on a range of OSes. Furthermore, it uses the cmake build-system, which makes it the ideal candidate for stressing Goa with a reasonably complex project. Using Goa itself turned out to be straight-forward and by re-using the already existing back ends for POSIX-like systems, e.g. OSS for handling audio via the mediastreamer library, we only had to tweak the build-system in very few places. In the process, we encountered a few short-comings regarding the handling of shared libraries in cmake-based Goa projects. We were happy to address these and the fixes are part of the current Goa release.

Since the user interface of the console client cannot be used comfortably on the PinePhone, it had to be complemented by a GUI application that handles the user interaction. While looking for such an application we noticed the SIP Client for Ubuntu Touch that utilizes the Ubuntu Touch UI Toolkit - where a port to Genode already exists. We adapted that project for our needs and - with the major components now in place - created a preset for Sculpt on the PinePhone.

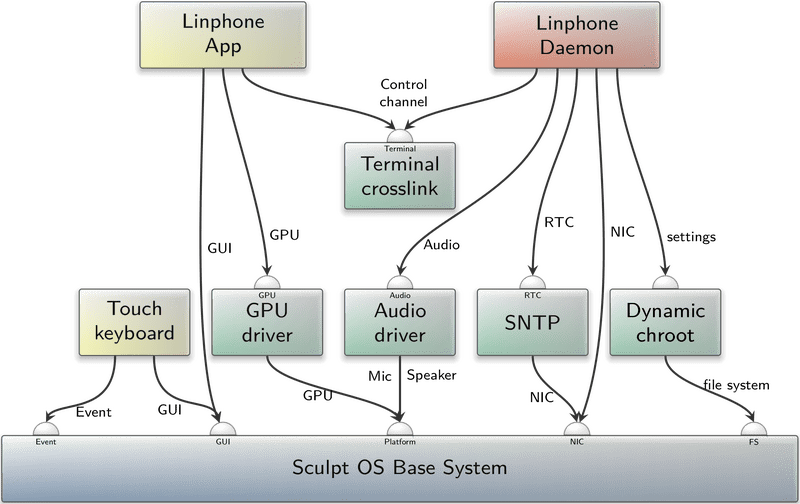

The preset's structure is depicted by the following chart.

Structure of the linphone preset

Each of the two components has its own requirements: The Linphone client needs access to the network, has to store its configuration, and requires access to the audio subsystem. It is the driving force behind the operation while it receives its instructions from the GUI. The GUI needs access to the GPU driver, as required for fluent rendering of QML on the PinePhone, as well as access to input events for user interaction.

Naturally these requirements are satisfied by other components also incorporated into the preset:

  • The Dynamic chroot component selects and limits the file-system access of the client to the configured directory. In case of the PinePhone it points to the /recall/linphone directory on the SD-card.

  • The SNTP component provides the client with a correct real-time clock value. Note that the SNTP component uses a different TCP/IP-stack than the client itself.

  • The Audio driver component makes the speaker as well as the microphone available to the client.

  • The GPU driver component allows the GUI to render the interface via OpenGL on the GPU.

  • The Touch keyboard collects the touch events and translates them into key events that are then consumed by the GUI.

The Linphone client and the GUI themselves are connected via the _terminal crosslink_ component where the control channel is formed by connecting stdout from the GUI to stdin from the client and vice versa.

As denoted by the chart, the client actually functions as a daemon that is running in the background, whereas the GUI is the app the user interacts with.

For more information and a usage guide, please refer to the corresponding Genodians article.


We ported socat, a multipurpose relay (SOcket CAT), to Genode and created a ready-to-use pkg archive that allows for making a terminal session available on port 5555.

SDL libraries

This release also makes more SDL-related libraries available on Genode. The common helper libraries like SDL2-image, SDL2-mixer, SDL2-net, and SDL2-ttf complement the SDL2 support, while the SDL-gfx library enhances the support of SDL1.2. All these libraries are located in the genode-world repository.

Device drivers

USB device drivers updated to Linux 6.1.20

With our ongoing effort to replace our traditional device-driver porting approach by our new device-driver environment, USB-device drivers were subject to this porting effort during this release cycle. This includes the HID driver for keyboard, mouse, and touch support, the network driver, which supports USB NICs like AX88179 or the PinePhone's CDC Ether profile of its LTE Modem, as well as the USB modem driver that offers basic LTE-modem access for modems relying on the MBIM configuration.


In contrast to the USB host-controller drivers, USB device drivers do not communicate with the hardware directly, but only send messages to the USB host controller through Genode's USB-session interface. So, from Genode's point of view, they can be classified as protocol stacks. Therefore, we based these drivers not on the DDE Linux version that offers direct hardware access, but on virt_linux as described in release 23.05.

We replaced the actual Linux calls that create USB messages (like control, bulk, or IRQ transfers) by custom implementations that forward these messages through a USB client session to the host controller. The client-session implementation is written in C++. Since our DDE Linux strictly separates C++ from C-code, we introduced a USB-client C-API that can be called directly by the replacement functions.

The same goes for the services the USB drivers offer/use. These services are accessed through the respective C-APIs. For example, the HID driver communicates with Genode's event session through the event C-API and the NIC driver through the uplink C-API.

USB HID driver

The HID driver is a drop-in replacement of its predecessor. It still offers support to handle multiple devices at once, and the configuration remains unchanged.

Note that we have dropped support for multi-touch devices, like Wacom, because touch was merely in a proof of concept state that should be redesigned and rethought for Genode if needed.

USB modem

The LTE-modem driver (usb_modem_drv) has been integrated into the network driver (see below).

USB net

The usb_net_drv is a drop-in replacement for its predecessor with the exception that an additional configuration attribute is available:

<config mac="2e:60:90:0c:4e:01 configuration="2" />

Next to the MAC address (like in the previous version), the USB configuration profile can be specified with the configuration attribute. For USB devices that provide multiple configuration profiles, the Linux code will always select the first non-vendor-specific configuration profile found. This may not be the desired behavior, and therefore, can now be specified.

The available configuration profile of a device can be found out under Linux using:

 lsusb -s<bus>:<device> -vvv

Currently the driver supports NICs containing an AX88179A chip and that offer the NCM or the ECM profile. Support for the SMSC95XX line of devices has been dropped, but may be re-enabled if required.

As mentioned above, the LTE modem support for MBIM-based modems has been merged into this driver because an LTE modem is merely a USB networking device (for data) plus a control channel. In case the driver discovers an LTE modem, it will announce a Genode terminal session as a control channel.

Example configuration for the Huawai ME906s modem:

<start name="usb_net_drv">
  <resource name="RAM" quantum="10M"/>
    <service name="Terminal"/>
  <config mac="02:00:00:00:01:01" configuration="3"/>
    <service name="Uplink"><child name="nic_router"/></service/>

The MBIM interface is enabled using configuration profile "3" and the service "Terminal" is provided.

We have tested the driver mainly on Lenovo Thinkpad notebooks using Huawai's ME906e and Fibocoms's L830-EB-00 modems, but different modems might work as well.

Current limitations

The current version of virt_linux does not support arm_v6 platforms like Raspberry Pi (Zero). We will address this shortcoming with the next release and update the drivers accordingly.



Following the official migration guide of SDL, the fb_sdl framebuffer driver was updated from SDL1 to SDL2 by Robin Eklind. Thanks to this valuable contribution, fb_sdl is now ready to run on modern Linux installations especially in environments that use the Wayland display server. Note, to compile the component from source, the installation of libsdl2 development packages (e.g., libsdl2-dev, libdrm-dev, and libgbm-dev on Ubuntu/Debian) is required.

Build system and tools

Debug information for depot binaries

So far, the Genode build system created symbolic links to unstripped binaries in the debug/ directory to provide useful debug information, but binaries from depot archives did not have this information available.

With this release, the create, publish and download depot tools received an optional DBG=1 argument to create, publish, and download dbg depot archives with debug-info files in addition to the corresponding bin depot archives.

To avoid the storage overhead from duplicated code with archived unstripped binaries, we now create separate debug info files using the "GNU debug link" method in the Genode build system and for the dbg depot archives.

Decommissioned implicit trigger of shared-library builds

Since the very first version, Genode's build system automatically managed inter-library dependencies, which allowed us to cleanly separate different concerns (like CPU-architecture-specific optimizations) as small static libraries, which were automatically visited by the build system whenever building a dependent target.

When we later introduced the support for shared libraries, we maintained the existing notion of libraries but merely considered shared objects as a special case. Hence, whenever a target depends on a shared library, the build system would automatically build the shared library before linking it to the target.

With the later introduction of Genode's ABI's in version 17.02, we effectively dissolved the link-time dependency of targets from shared objects, which ultimately paved the ground for Genode's package management. However, our build-system retained the original policy of building shared libraries before linking dependent targets. Even though this is arguably convenient when using many small inter-dependent libraries, with complex shared libraries as dependencies, one always needs to locally build those complex libraries even though the library internals are rarely touched or the library is readily available as a pre-built binary archive. In the presence of large 3rd-party libraries, the build system's traditional policy starts to stand in the way of quick development-test cycles.

With the current release, we dissolve the implicit built-time dependency of targets from shared libraries. Shared libraries must now be explicitly listed in the build command of run scripts. For example, for run scripts that build Genode's base system along with the C runtime, the build command usually contains the following targets.

 core lib/ld init timer lib/libc lib/libm lib/vfs lib/posix

However, in practice most run scripts incorporate those basic ingredients as depot archives. So those targets need to be built only if they are touched by the development work. To incorporate the results of all explicitly built targets into a system image, the build_boot_image command can be used as follows. Note that the listing of boot modules does not need to be maintained manually anymore.

 build_boot_image [build_artifacts]

During the release cycle of version 23.11, we have revisited all run scripts in this respect, and we encourage Genode users to follow suit. The run tool tries to give aid to implement this change whenever it detects the presence of a build_boot_image argument that is not covered by the prior build command. For example, on the attempt to integrate without having built lib/ld, the following diagnostic message will try to guide you.

 Error: missing build argument for:

   The build_boot_image argument may be superfluous or
   the build step lacks the argument: lib/ld

   Consider using [build_artifacts] as build_boot_image argument to
   maintain consistency between the build and build_boot_image steps.

The inconvenience of the need to adopt existing run scripts notwithstanding, developers will certainly notice a welcome boost of their work flow, especially when working with complex 3rd-party libraries.
