Release notes for the Genode OS Framework 21.11

Version 21.11 of the Genode OS Framework puts device drivers into the spotlight. Where to begin? Back in January, we envisioned Genode running on the PinePhone. With the current release, the first interactive Genode scenarios become alive on this platform. Unlike the regular Linux-based systems used on the PinePhone, we are walking on new ground by running each individual driver in a dedicated sandbox.

Speaking of 64-bit ARM platforms, Genode's support for the i.MX8 SoC family received a new USB host driver as well as the first version of the Vivante GPU driver. The latter is a continuation of our GPU-related work presented in the previous release, which proves that our approach of integrating hardware-accelerated graphics into the framework's architecture is applicable across different GPU vendors. As promised three months ago, we have also taken our custom Intel GPU multiplexer to Gen9 or newer devices. In fact, GPU support has now become a regular feature of the Genode-based Sculpt OS that can be taken for a spin on commodity PC hardware.

Even though most efforts are nowadays spent on 64-bit platforms, we have revived Genode's support for Xilinx Zynq devices in aspiration of future hardware-software co-design work. Those chips combine FPGA fabric with 32-bit ARM cores and thereby allow us to explore the combination of reconfigurable hardware with Genode's component architecture.

For users who prefer the comforts of virtual hardware over the tinkering with physical devices, new drivers for VirtIO input and graphics open up the use of interactive Genode systems on Qemu's "virt" platform.

Besides the predominant device-driver topics of the release, one other highlight is the feature completion of Genode's version of VirtualBox 6 on PC platforms, which has now reached parity with the time-tested version 5. Now, features like shared folders, shared clipboard, sound, or USB pass-through have become readily available.

A little kingdom for each SoC family   NXP i.MX family   Xilinx Zynq   Allwinner A64 (PinePhone)   RISC-V Base framework and OS-level infrastructure   New pattern for C++ error handling   Pin I/O session interfaces   Genode C APIs   Event filter for converting touch to pointer input Device drivers   Hardware-accelerated graphics     Generic GPU-session interface     Intel GPU support for Gen9 and newer     Vivante GPUs (i.MX8)   VirtIO input and framebuffer drivers   Linux device-driver environment Libraries and Applications   Feature completion of VirtualBox 6   Sculpt OS for 64-bit ARM in addition to x86   Audio and OpenGL support for libSDL2   SSH terminal moved to Genode world repository Build system and tools

A little kingdom for each SoC family

With the number of supported boards and CPU architectures growing, our existing maintenance structure of the central Genode code repository becomes increasingly nonviable. We made the following observations.

First, with respect to drivers ported from Linux, each SoC tends to refer to a different flavour of the Linux kernel. This so-called vendor kernel may be a specific version with a blessed kernel configuration, or even a hard fork. In the past, we tried harmonizing drivers across SoCs by using the vanilla Linux kernel as common ground. But in practice, this common ground seems to be walked-on by only a few. Devices are shipped with vendor kernels after all. To get the best supported drivers for a given hardware, we have to port the drivers from the respective vendor kernel. This realization, in turn, faces us with the problem of a growing number of vendor kernels we have to work with whenever extending Genode's hardware support to a new SoC. But there are only so many Linux kernels one can juggle with.

Second, when using one monolithic code base for all SoCs, the coordination of the code repository becomes a bottleneck when it comes to reviewing and merging contributions, and the nurturing of a consistent level of quality assurance. In the case of Genode, this responsibility is shared by two head maintainers. However, their expertise lies in the Genode framework, not in the peculiarities of specific SoC hardware. Hence, the review of such SoC-related contributions must remain at surface level. But the burden of responsibility still rests on the two.

Third, we ultimately want to encourage 3rd parties - like hardware vendors - to supplement SoC support for Genode independently from us. Forcing such independent developers to funnel their results into our code base is not always natural and may even be legally impeded by Genode's need for a contributor's agreement. We want to avoid such artificial friction.

The consequence of these observations is the need to modularize our code base around the idea of giving each SoC family a little kingdom of their own. We envision a code repository with a different maintainer for each SoC family. As a prerequisite, we had to cleanly separate SoC-specific code from the generic code that will remain in the main Genode repository. To stress this approach, each of four developers picked a dedicated SoC family and went with it. Stefan Kalkowski took the i.MX-related code to his genode-imx repository, Johannes Schlatow took the Xilinx Zynq code to his genode-zynq repository, Norman Feske maintains the Allwinner code for the PinePhone in his genode-allwinner repository, and Sebastian Sumpf gave the RISC-V support a new home at his genode-riscv repository.

By looking at this modularization from four different perspectives at the same time, we reached satisfying interfaces between the generic and SoC-specific code. We found that this maintenance model works as anticipated. In particular, we hoped that each SoC can be shepherded by a single person without stress. This turned out to be true.

We also found that the taken approach gives each maintainer a sense of autonomy that was not possible with one monolithic code base. This is particularly fruitful when drafting generic utilities for the eventual inclusion into Genode's main repository. The drafts can first receive a test of time at individual SoC repositories before integrating them into the common code base, the pin I/O interfaces described in Section Pin I/O session interfaces being a good example.

The supportive tooling for each SoC tends to differ between vendors, speaking of custom system-image formats, boot loaders, or firmware. The SoC-specific repositories provide a natural home for hosting such tools, custom work-flow scripts, and configurations.

With this exploratory phase completed, we plan to move the SoC-specific repositories - that currently reside at each maintainer's GitHub account - under the banner of genodelabs during the next release cycle.

NXP i.MX family

Support for the family of i.MX SoC related boards is located in the genode-imx repository. By now, it contains far-reaching support for the i.MX 8M Quad evaluation kit, and the MNT Reform2.

Besides the basic kernel support for Genode's custom base-hw microkernel, it contains drivers for using SD and eMMC cards, HDMI, and MIPI-DSI connected displays, Ethernet, and USB connected devices. Moreover, we are proud to introduce support for the Vivante GPU used by the i.MX 8M SoC. All mentioned device drivers were ported using the re-imagined approach to port Linux drivers that was introduced in the previous release.

To obtain a ready-to-use SD-card when testing an arbitrary run-script scenario, it is sufficient to add the following value to the RUN_OPT variable:

 RUN_OPT += --include image/imx8mq_mmc

Depending on which board you've chosen, it will build the corresponding u-boot bootloader, file system, Genode system image, and integrate those parts into one SD-card image.

Xilinx Zynq

Basic platform support for the Zynq-7000 SoC has already been added to Genode with release 15.11. While the virtualized zynq_qemu board support resided in the main Genode repository and was regularly tested, support files for real Zynq-hardware were living in segregation within the Genode-world repository.

By creating a new realm in form of a genode-zynq repository, we were able to consolidate the Zynq-specific board support and drivers in one place. Furthermore, we are currently intensifying our work on this platform and documenting the journey on genodians.org. This particularly includes building ready-to-use SD card images with u-boot and supporting run-time re-configuration of the FPGA.

In order to use the zynq repository, you only need to create a clone at repos/zynq, create a new build directory for arm_v7a and uncomment the corresponding line in your etc/build.conf. Step-by-step instructions for individual boards can be found at repos/zynq/doc/.

Allwinner A64 (PinePhone)

During the release cycle, Genode's support for the Allwinner A64 SoC, and the PinePhone in particular, made big leaps forward. The corresponding code is hosted in the dedicated genode-allwinner repository.

First, the Linux version taken as the basis for ported device drivers has been updated to 5.14.1 in order to support the revision v2 of the Pine-A64-LTS board, which features a different Ethernet PHY, namely the Motorcomm YT8511 PHY. Genode's pine_a64lts board supports both board revisions now.

To enable touchscreen input on the PinePhone, the corresponding driver for the Goodix touchscreen controller has been ported from the Linux kernel. It complements the framebuffer driver that we introduced with the previous release. Combined, both drivers enable the use of Genode's regular interactive scenarios based on the drivers_interactive package. The biggest technical challenge was the untangling of both drivers from the clock, reset, and power control units (CCU, RSB, PMIC). Those low-level platform configurations are now handled by a new A64-specific version of the platform driver.

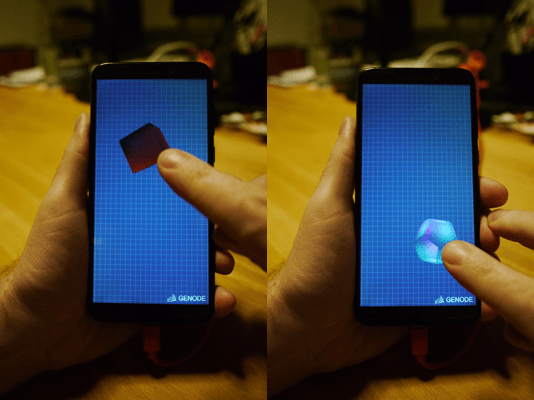

Genode's nano-3D example responding to touch input

The improved driver support is accompanied with new tooling for booting Genode on the PinePhone, either via USB fastboot, or via SD-card. Both options are described in the following Genodians article.

RISC-V

RISC-V board support for the base-hw kernel is now located at the genode-riscv repository. Currently, the repository contains support for the MiG-V SoC including kernel specific parts as well as a driver for MiG-V's network-interface controller.

Base framework and OS-level infrastructure

New pattern for C++ error handling

Genode employs C++ exceptions for propagating errors, which is true to the language. However, the use and the mechanics of C++ exceptions comes with its own bag of problems. The current release introduces a new error-handling pattern in the form of the so-called Attempt utility. Its name reflects its designated use as a carrier for return values. This new utility is described by a dedicated article at Genodians.org:

During the release cycle, we applied the Attempt pattern to Genode's low-level memory-allocation code, namely core's PD session interface (for the allocation of RAM dataspaces), and the code related to the generic Allocator interface (for the allocation of bytes). The latter is an extensive change, touching all implementations of this interface.

To largely uphold compatibility with components using the original exception-based interface as a mere client - in particular use cases where an Allocator is passed to the new operator - the traditional alloc is still supported. But it exists merely as a wrapper around the new try_alloc. However, the change does not preserve compatibility with the original Range_allocator interface. So uses of this interface must be adapted.

Pin I/O session interfaces

On ARM-based SoCs, the use of general-purpose I/O (GPIO) pins is omnipresent. Traditionally, Genode features the "Gpio" session interface for this purpose. This interface allows a client to access an individual pin. Once assigned to a pin, the session grants the client the full responsibility for the pin. In particular the direction of the I/O pin is laid into the hands of the client. We later realized that the wiring and thereby the direction of a pin is ultimately a board-level decision. Wrongly operating an input pin in output mode can easily result in a short-circuit. Therefore, the client of an individual pin should better not be burdened with the responsibility to control the pin direction or pull resistors. To address this concern, it is best to split the roles of GPIO pins into clear-cut session interfaces. Those roles are:

• The sensing of the state of a GPIO pin, e.g., detecting whether a button is pressed or not: operating a pin as an input signal. This role is now covered by the "Pin_state" session interface with the single RPC function

   bool state() const;


  By calling this function, the client can request the state of the pin. That's it.

• Controlling the signal level of a pin: operating a pin as an output signal. This role is now addressed by the "Pin_control" session interface that provides an interface of only one rather unsurprising RPC function

   void state(bool);


• Receiving a notification of a change of the signal level of a GPIO pin: operating a pin as an interrupt source. This role can be represented by Genode's existing IRQ session interface - the same interface as provided by Genode's core for GIC interrupts.

Since each pin corresponds to a separate session, per-pin access control becomes possible by Genode's regular session-routing mechanisms. In contrast to the original GPIO session, the role of each pin as output and input becomes explicit. A client can no longer drive a pin that is an input signal unless explicitly permitted.

The interfaces were created and time-tested in the context of our PinePhone-related development, in particular during the work described in the following two articles.

Pin-driver framework

In real-world system scenarios, a variety of different components must decidedly interact with individual GPIO pins. This is where a so-called pin driver enters the picture. This component provides the pin-state, pin-control, and IRQ services. Analogously to how the platform driver safeguards the access to device resources by different - mutually distrusting - device drivers, the pin driver's job is the safeguarding of GPIO pins.

To ease the implementation of such pin drivers, the new session interfaces are accompanied by a set of new utilities in os/pin_driver.h. The use of these utilities is best illustrated by the pin driver for the A64 SoC.

Time-multiplexed pin direction

There exist rare use cases for changing the direction of an I/O pin during runtime. For example, the Goodix touchscreen controller as found in the PinePhone monitors the state of its interrupt signal during reset. During its normal operation, this signal is driven by the touchscreen controller but during reset, it is driven by the host to send one bit of information (I2C address selection). We support this time-multiplexed use of one pin as both input and output by the means of session lifetimes. The pin driver switches the pin into output mode not before a client establishes a pin-control session referring to this pin. The client can thereby control the direction by creating or closing its pin-control session.

Genode C APIs

USB host-controller service API

While porting the Linux driver for the Designware USB host-controller used within the i.MX 8M SoC, we introduced a new C API to serve Genode USB clients from C driver ports. It enables drivers to:

• Announce and release USB devices,

• Ask for a session handle of an open session via the bus/device ID pair,

• Ask for a single USB request via a session handle,

• Acknowledge a USB request via a session and request handle, and

• Notify potential USB clients that I/O progress has been made.

You can find the new C API under repos/os/include/genode_c_api/usb.h. A working example driver can be found within the genode-imx repository under src/drivers/usb_host/imx8mq.

Touchscreen driver API

To accommodate input drivers written in C, like the ones ported from the Linux kernel, we need a clean way to connect C code with Genode's event session interface. The current release introduces a C API to be used by input drivers to generate Genode events. The interface is located at repos/os/include/genode_c_api/event.h whereas the implementation resides at repos/os/src/lib/genode_c_api/event.cc. The initial version is limited to multitouch events only. As of now, it is used by the Goodix touchscreen driver for the PinePhone.

Event filter for converting touch to pointer input

Unlike traditional pointer devices, touchscreens have no notion of a pointer position, hovering, or mouse buttons. E.g., without touching, there is no position. There exists a gap between those devices and regular GUI applications, which respond to pointer events in terms of hovering motion (in screen coordinates) and mouse clicks. Genode's existing touchscreen drivers try to bridge this gap by translating touch input to pointer events in rather pragmatic ways. This is not optimal for two reasons.

First, putting the burden of emulating traditional pointer devices on the touchscreen drivers not only inflates their complexity but is also unnatural when the calibration of touch coordinates to screen coordinates comes into play. In this case, the touchscreen driver must be made aware of the display resolution. Second, the heuristics of how touch events are best translated into pointer events tend to differ from driver to driver, or between Genode use cases. Any intelligence that is builtin in the drivers stands in the way of interchanging the drivers or enhancing the translation across all drivers (e.g., adding two-finger-scroll).

To solve this problem in a clean way, we added a new optional filter for translating touch events to pointer events to Genode's event-filter component (first introduced in 17.02 as input filter, reworked in 20.08). The new filter comes in the form of a new <touch-click> node in the filter's <output> definition. For example, the configuration of the event filter that sits in-between the Goodix touchscreen driver for the PinePhone and the nitpicker GUI server looks as follows.

 <config>
   <output>
     <touch-click>
       <input name="touch"/>
     </touch-click>
   </output>
   <policy label="touch" input="touch"/>
 </config>

The filter augments touch events with artificial absolute motion and mouse click/clack events as understood by regular GUI applications. The original touch events are preserved, enabling touch-aware applications to interpret touch gestures.

Device drivers

Hardware-accelerated graphics

Generic GPU-session interface

Intel GPU support for Gen9 and newer

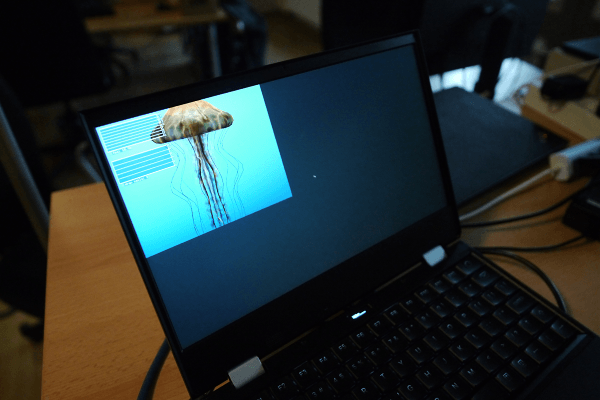

Vivante GPUs (i.MX8)

VirtIO input and framebuffer drivers

This section was co-authored by Piotr Tworek who created the VirtIO driver support. Thanks Piotr for the welcome contribution!

Over the previous releases of Genode this year, the framework received steadily improved driver support for virtual devices as supported by Qemu. The primary motivation behind this line of work is the use of virtual hardware as an experimentation ground for Genode on the AARCH64 and RISC-V architectures. The use of virtual hardware nicely side-steps the costs and (un-)availability of suitable devices, and avoids the extra effort that is usually involved when working with real hardware. The current release further advances the virtual-device support by the introduction of VirtIO input and graphics drivers.

VirtIO input

The new input driver can service Qemu VirtIO mouse, keyboard, and tablet devices. The implementation is based on the VirtIO 1.1 device specification, Section 5.8 "Input Device". The driver can service three separate device types, namely mouse, keyboard, and tablet. The main difference between mouse and tablet devices is that the former produces relative events whereas the latter produces absolute motion events.

By default, the driver tries to attach to the first VirtIO input device of any of the listed types. Such behavior would pose a bit of a problem since in Genode, we'd like to know that a specific instance of the driver will attach only to a mouse for example. This way, we can define proper policies for it. To allow such behavior, the VirtIO input driver has one configuration key called match_product, which accepts the values of "mouse", "keyboard", "tablet", and "any" (default). Using this config key, one can accomplish exactly what is needed to tell the driver to only attach to a VirtIO input device if it's of "match_product" type.

VirtIO framebuffer

The new VirtIO framebuffer driver implements the necessary bits to provide 2D framebuffer support on top of a VirtIO GPU device as provided by Qemu. Compared to the ramfb driver, which was introduced in Genode 21.08, the VirtIO framebuffer driver has one major benefit: It allows the Qemu window to be dynamically resized at runtime. The driver will treat this as resolution change and act accordingly. In contrast to the VirtIO input driver, the framebuffer driver does not support any extra config options.

Practical use

Thanks to the new drivers, the drivers_interactive package for the virt_qemu board has become fully interactively usable. The drivers subsystem spawns two instances of virtio_input. One attaches to a keyboard device and the second to a mouse. This is what the default virt_qemu board exposes. At this time, the tablet device is not instantiated by default but it might become useful in the future for testing Genode's touch support.

Make sure that Qemu exposes those new devices in the modern VirtIO 1.0 mode. Versions up to Qemu 5.1.0 still use pre-1.0 mode in the default setup.

One thing to keep in mind is that the VirtIO framebuffer driver will change the resolution of the virtual display whenever the Qemu window is resized. This means that for high resolution screens, one might have to tweak the default RAM quota for the driver. The default should be enough for 1080p screens, but not much more than that.

Linux device-driver environment

While working on Linux device-driver ports that use the new DDE Linux environment introduced in release 21.08, we stumbled across some inaccuracies and missing pieces of the former implementation. For instance, kworker threads were blocked unconditionally before. But the original Linux kernel semantics includes corner-cases that delay kworker suspension. By adding them, we circumvent potential deadlocks. The cache maintenance operations got optimized by checking the read/write direction of the device with regard to DMA memory more accurately. Moreover, we had to learn that on ARM the minimal alignment for all allocations within Linux have to be of cache-line granularity.

Feature-wise, a new API got introduced to access the pin-control service and IRQ sessions offered by it. This is useful when a Linux driver directly depends on GPIO settings respectively uses GPIO pins as interrupt source.

Libraries and Applications

Feature completion of VirtualBox 6

With Sculpt OS 21.10, we released VirtualBox version 6 as experimental alternative to the existing port of version 5. We also switched to version 6 as daily driver on our development machines at Genode Labs. These steps yielded the following improvements during the past Genode release cycle.

The integration features shared folders, shared clipboard, and guest mouse-pointer shape were fully enabled. Most guest-integration modules in VirtualBox are implemented as shared libraries/objects, which are loaded at runtime on demand. Following our goal to keep changes to the upstream code minimal, our version of VirtualBox 6 now provides VBoxSharedClipboard and VBoxSharedFolders as dedicated libraries that must be integrated into the system as follows. Note, the libraries are accessed by the VirtualBox code as files before loading but must also be available as ROMs to our runtime dynamic linker.

 <start name="virtualbox6">
   <config vbox_file="machine.vbox6">
     <vfs>
       <!-- original file names of shared objects -->
       <rom name="VBoxSharedClipboard.so"/>
       <rom name="VBoxSharedFolders.so"/>
     </vfs>
   </config>
   <route>
     <!-- map file names to Genode shared-object naming scheme -->
     <service name="ROM" label="VBoxSharedClipboard.so">
       <parent label="virtualbox6-sharedclipboard.lib.so"/> </service>
     <service name="ROM" label="VBoxSharedFolders.so">
       <parent label="virtualbox6-sharedfolders.lib.so"/> </service>
   </route>
 </start>

As depicted in the configuration snippet above, we use the file extension .vbox6 for VirtualBox 6 configuration files. The background is that there are some subtle incompatibilities in VirtualBox 6 with settings we used in version 5. For example, the version of the configuration file must be set to 1.18+ for maximum compatibility of virtual-device configuration and guest operating systems. An example configuration is provided by the pkg/vbox6 depot archive and specifies the version like follows.

 <VirtualBox xmlns="http://www.virtualbox.org/" version="1.18-genode">

Unlike VirtualBox 5, the current version does not implement a custom Audio back end for Genode but uses the existing OSS back end of the original implementation. The feature can be enabled in .vbox and runtime configuration. We recommend using the HDA controller.

 <AudioAdapter controller="HDA" driver="OSS" enabled="true" enabledOut="true" enabledIn="false"/>

 <start name="virtualbox6">
   <config>
     <vfs>
       <dir name="dev"> <oss name="dsp"/> </dir>
     <vfs>
   </config>
 </start>

More device-related improvements are the reporting of mouse-wheel events, the support of up to 8 pass-through USB devices via the virtual XHCI USB3 controller, and a ready-to-use Sculpt package to capture webcam streams in the VM (genodelabs/pkg/vbox6-capture).

Finally, this release includes a whole lot of stability improvements to bring VirtualBox 6 on par with version 5 in daily use like robust machine state handling including the FPU, fixed corner cases in the AHCI model and Startup-IPI implementation as well as enhanced timeout and CPU wakeup handling.

Sculpt OS for 64-bit ARM in addition to x86

Up until now, the Genode-based Sculpt OS was primarily targeted at the 64-bit x86 architecture. However, since the hardware support of 64-bit ARM platforms like i.MX8 has reached almost feature parity with the PC platform, it was time to introduce the notion of CPU architectures to package index files.

In Sculpt OS, software packages are provided in a federated way from any number of package providers. Each provider offers a so-called index that enlists the available package versions blessed for a specific Sculpt OS release. See the release notes for Genode 19.02 for more details. Starting with Sculpt OS 21.10 released in October, each index file features a declaration of the CPU architectures supported by the package provider.

 <index>
   <supports arch="x86_64"/>
   <supports arch="arm_v8a"/>
  ...

Sculpt uses this information to decide whether to display the index or not by comparing the architecture of the running machine with these declarations. Individual entries of an index file can be tagged as being specific for one architecture.

 <pkg path="mesa_gpu-intel" info="Intel GPU driver (IRIS)" arch="x86_64"/>

This annotation can also be specified for a sub index.

 <index name="Virtual machines" arch="x86_64">
    ...
 </index>

Thanks to this approach, most packages - which are architecture-agnostic - can be offered for both x64_64 and arm_v8a with almost no manual work. In fact, starting with Sculpt 21.10, all default packages offered by Genode Labs are available for both architectures.

Audio and OpenGL support for libSDL2

With this release, we extend the features of our SDL2 port by enabling audio support via the OSS back end and added basic support for using OpenGL.

Re-using the existing OSS back end via our VFS OSS plugin is in contrast to how we enabled audio in our SDL1 port where we use Genode's audio-out session directly. Instead of having to add a Genode specific back end to each ported software, it is more reasonable to have just one implementation of a somewhat common interface for which the back end already exists.

The OpenGL support, on the other hand, has not been thoroughly tested yet but works well enough for one or the other game. It still suffers from the same limitation as the normal video back end where resizing the window during runtime is not supported. This feature is yet to be implemented.

Additionally, we made SDL2 now to use its existing pthread back ends, rather than using the generic fallback ones, as we deem the current pthread support in Genode sufficient.

SSH terminal moved to Genode world repository

The SSH terminal component now resides in the world repository. When we initially introduced this component, it complemented the existing TCP terminal. Rather than using plain TCP to access a terminal server the connection is secured by the SSH protocol.

In the meantime the component itself incorporated more and more features that were not anticipated in the initial design. Since we have not used the component much ourselves lately, albeit some features are tested in our nightly CI, we decided to move it to the world repository.

On a different note, the component now features new support for SFTP that enables one to access a Genode file system via SSH. Thanks to Tomasz Gajewski for this welcome contribution.

Build system and tools

Moving the platform-specific board support into extra repositories made it necessary to review the run tool with respect to virtualized platforms. For running Genode within Qemu, the run tool used to assemble the Qemu command line depending on the target board. In order to achieve a clean cut between the main repository hosting this part of the run tool and the platform-specific repositories, we came up with a way to specify the Qemu arguments outside the main repository.

The solution follows along our approach of how we already specify the architecture and link address of a target board in distinct files within a board-property directory board/<board_name>/. Similarly, the board-specific Qemu arguments are now provided in a board/<board_name>/qemu_args file. This file may contain one or multiple lines that will be appended to the command line generated by the run tool. Because it is required by virt_qemu, it is possible to restrict particular arguments to a certain spec, e.g. arm_v8a, by prefixing the line with arm_v8a:. Note, that any -m * argument, which specifies the amount of RAM, provided within a qemu_args file will override any memory setting provided in the run scripts.

Moreover, the qemu_args file is obliged with instantiating a network controller since this is also specific to the platform. For the zynq_qemu board, e.g., this is achieved by the following arguments:

 -net nic,model=cadence_gem,netdev=net0 -netdev user,id=net0

Always instantiating a network device removes the need to call append_qemu_nic_args in the run scripts. However, you can still use this function to add forwarding rules to the netdev with id net0.
