Release notes for the Genode OS Framework 10.11

During the past three months, the Genode project was primarily driven by our desire to create a bigger picture out of the rich set of components that we introduced over time, in particular over the last year. Looking back at the progress made since mid 2009, there were many functional additions to the framework, waiting to get combined. To name a few, we added support for networking, audio output, real-time priorities, mandatory access control, USB, ATAPI block devices, Python, hardware-accelerated 3D graphics, Qt4, the WebKit-based Arora browser, and the paravirtualized OKLinux kernel. So many wonderful toys waiting to get played with. This is how the idea of creating the new Genode Live CD was born. In the past, Genode was mostly used in settings with a relatively static configuration consisting of several components orchestrated to fulfill a few special-purpose functions. Now, the time has come for the next step, creating one dynamic setup that allows for the selection of different subsystems at runtime rather than at boot time.

This step is challenging in several ways. First, the processes that form the base system have to run during the entire time of all demo setups. If any of those processes contained stability problems or leaked memory, it would subvert the complete system. Second, the components of all subsystems combined are far too complex to be loaded into memory at boot time. This would not only take too long but would consume a lot of RAM. Instead, those components and their data had to be fetched from disk (CDROM) on demand. Third, because multiple demo subsystems can be active at a time, low-level resources such as networking and audio output must be multiplexed to prevent different subsystems from interfering with each other. Finally, we had to create a single boot and configuration concept that is able to align the needs of all demos, yet staying manageable.

Alongside these challenges, we came up with a lot of ideas about how Genode's components could be composed in new creative ways. Some of these ideas such as the browser-plugin concept and the http-based block server made it onto the Live CD. So for producing the Live CD, we not only faced the said technical challenges but also invested substantial development effort in new components, which contributed to our overall goal. Two weeks ago, we released the Live CD. This release-notes document is the story about how we got there.

To keep ourself focused on the mission described above, we deferred the original roadmap goal for this release, which was the creation of a Unix-like runtime environment to enable compiling Genode on Genode. This will be the primary goal for the next release.

Execution environment for gPXE drivers
On-demand paging
Base framework
Operating-system services and libraries
  Finished transition to new init concept
  Virtual network bridge (Proxy ARP)
  Nitpicker GUI server
    Alpha blending
    Tinted views in X-Ray mode
    Misc Nitpicker changes
  ISO9660 server
  Audio mixer
  Nitpicker-based virtual Framebuffer
  TAR ROM service
  DDE Kit
Device drivers
  PCI bus
  VESA framebuffer
  Audio
Paravirtualized Linux
Protocol stacks and libraries
  Gallium3D / Intel GEM
  lwIP
  Qt4
New Gems repository with HTTP-based block server
Tools
  Automated coding-style checker
Platform-specific changes
  OKL4
  Pistachio
  Linux

Execution environment for gPXE drivers

Up to now, DDE Linux provided Genode with drivers for hardware devices ranging from USB HID to WLAN. In preparation of the live CD, we noticed the demand for support of a broader selection of ethernet devices. Intel's e1000 PCI and PCIe cards seemed to mark the bottom line of what we had to support. The major advantage of NIC drivers from Linux is their optimization for maximum performance. This emerges a major downside if DDE Linux comes into play: We have to provide all the nifty interfaces used by the driver in our emulation framework. To achieve our short-term goal of a great live CD experience, we had to walk a different path.

gPXE is a lovely network boot loader / open-source PXE ROM project and the successor of the famous Etherboot implementation. Besides support for DNS, HTTP, iSCSI and AoE, gPXE includes dozens of NIC drivers and applies a plain driver framework. As we were also itching to evaluate DDE kit and the DDE approach at large with this special donator OS, we went for implementing the device-driver environment for gPXE (DDE gPXE).

The current version provides drivers for e1000, e1000e, and pcnet devices. The emulation framework comprises just about 600 lines of code compared to more than 22,000 LOC reused unmodified from gPXE. Benchmarks with the PCNet32 driver showed that DDE gPXE's performance is comparable to DDE Linux.

The gPXE driver environment comes in the form of the new dde_gpxe repository. For building DDE gPXE, you first need to download and patch the original sources. The top-level makefile of this repository automates this task. Just issue:

 make prepare

Now, you need to include the DDE gPXE repository into your Genode build process. Just add the path to this directory to the REPOSITORIES declaration of the etc/build.conf file within your build directory, for example

 REPOSITORIES += $(GENODE_DIR)/dde_gpxe

After successful build the DDE gPXE based ethernet driver is located at bin/gpxe_nic_drv.

On-demand paging

In the release 8.11, we laid the foundation for implementing user-level dataspace managers. But so far, the facility remained largely unused except for managing thread contexts. This changed with this release.

So what is a user-level dataspace manager and who needs it? In short, Genode's memory management is based on dataspaces. A dataspace is a container for memory. Normally, it is created via core's RAM or ROM services. The RAM service hands out dataspaces containing contiguous physical memory. After allocating such a RAM dataspace, the creator can attach the dataspace to its own address space to access the dataspace content. In addition, it can pass a dataspace reference (called dataspace capability) to other processes, which, in turn, can than attach the same dataspace to their local address space, thereby establishing shared memory. Similarly, core's ROM service hands out boot-time binary data as dataspaces.

For the most use cases of Genode so far, these two core services were the only dataspace providers needed. However, there are use cases that require more sophisticated memory management. For example, to implement swapping, the content of a dataspace must be transferred to disk in a way that is transparent to the users of the dataspace. In monolithic kernels, such functionality is implemented in the kernel. But on a multi-server OS such as Genode, this is no option. Implementing such a feature into core would increase the trusted computing base of all applications including those who do not need swapping. Core would need a hard-disk driver, effectively subverting the Genode concept. Other examples for advanced memory-management facilities are copy-on-write memory and non-contiguous memory - complexity we wish to avoid at the root of the process tree. Instead of implementing such memory management facilities by itself, core provides a mechanism to let any process manage dataspaces. This technique is also called user-level page-fault handling.

For the Live CD, we decided to give Genode's user-level page-fault handling facility a go. The incentive was accessing files stored on CDROM in an elegant way. We wanted to make the CDROM access completely transparent to the applications. An application should be able to use a ROM session as if the file was stored at core's ROM service. But instead of being provided by core, the session request would be delegated to an alternative ROM service implementation that reads the data from disk as needed. Some of the files stored in the CDROM are large. For example, the disk image that we use for the Linux demo is 160MB. So reading this file at once and keeping it in memory is not an option. Instead, only those parts of the file should be read from disk, which are actually needed. To uphold the illusion of dealing with plain ROM files for the client, we need to employ on-demand-paging in the CDROM server. Here is how it works.

  1. The dataspace manager creates an empty managed dataspace. Core already provides a tool for managing address spaces called region manager (RM service). A RM session is an address space, to which dataspaces can be attached. This is exactly what is needed for a managed dataspace. So a dataspace manager uses the same core service to define the layout of a managed dataspace as is used to manage the address space of a process. In fact, any RM session can be converted into a managed dataspace.

     enum { MANAGED_DS_SIZE = 64*1024*1024 };
     Rm_connection rm(0, MANAGED_DS_SIZE);


    This code creates a RM session with the size of 64MB. This is an empty address space. A dataspace capability that corresponds to this address space can then be requested via

     Dataspace_capability ds = rm.dataspace();

  2. The dataspace capability can be passed to a client, which may attach the dataspace to its local address space. Because the managed dataspace is not populated by any backing store, however, an access would trigger a page fault, halting the execution of the client. Here, the page-fault protocol comes into play.

  3. The dataspace manager registers itself for receiving a signal each time a fault occurs:

     Signal_receiver rec;
     Signal_context client;
     Signal_context_capability sig_cap = rec.manage(client);
     rm.fault_handler(sig_cap);


    When an empty part of the managed dataspace is accessed by any process, a signal is delivered. The dataspace manager can then retrieve the fault information (access type, fault address) and dispatch the page fault by attaching a real dataspace at the fault address of the managed dataspace. In a simple case, the code looks as follows:

     while (true) {
       Signal signal = rec.wait_for_signal();
       for (int i = 0; i < signal.num(); i++) {
         Rm_session::State state = rm.state();
         ds = alloc_backing_store_dataspace(PAGE_SIZE);
         rm.attach_at(ds, state.addr & PAGE_MASK);
       }
     }


    This simple page-fault handler would lazily allocate a page of backing store memory each time a fault occurs. When the backing store is attached to the managed dataspace, core will automatically wake up the faulted client.

  4. The example above has the problem that the dataspace manager has to pay for the backing store that is indirectly used by the client. To prevent the client from exhausting the dataspace manager's memory, the dataspace manager may choose to use a limited pool of backing store only. If this pool is exceeded, the dataspace manager can reuse an already used backing-store block by first revoking it from its current managed dataspace:

     rm.detach(addr);


    This will flush all mappings referring to the specified address from all users of the managed dataspace. The next time, this address region is accessed, a new signal will be delivered.

This page-fault protocol has the following unique properties. First, because core is used as a broker between client and dataspace manager, the dataspace manager remains completely unaware of the identity of its client. It does not even need to possess the communication right to the client. In contrast, all other user-level page-fault protocols that we are aware of require direct communication between client and dataspace manager. Second, because dataspaces are used as first-level objects to resolve page faults, page faults can be handed at an arbitrary granularity (of course, a multiple of the physical page size). For example, a dataspace manager may decide to attach backing-store dataspaces of 64K to the managed dataspace. So the overhead produced by user-level page-fault handler can be traded for the page-fault granularity. But most importantly, the API is the same across all kernels that support user-level page fault handling. Thus the low-level page-fault handling code becomes inherently portable.

Having said that, we have completed the implementation of the described core mechanisms, in particular the detach facility, for OKL4. The ISO9660 driver as featured on the Live CD implements the ROM interface and reads the contents of those files from CDROM on demand. It uses a fixed pool of backing store, operates at a page-fault granularity of 64KB, and implements a simple fifo replacement strategy.

Base framework

There had been only a few changes to the base framework described as follows.

We unified the core-specific console implementation among all base platforms and added synchronization of vprintf calls. The kernel-specific code resides now in the respective base-<platform>/src/base/console/core_console.h files.

We removed the argument-less constructor from Allocator_avl_tpl. This constructor created an allocator that uses itself for meta-data allocation, which is the usual case when creating local memory allocators. However, on Genode, this code is typically used to build non-memory allocators such as address-space regions. For these use cases, the default policy is dangerous. Hence, we decided to remove the default policy.

The printf helper macros have been unified and simplified. The available macros are PINF for status information, PWRN for warnings, PLOG for log messages, and PERR for errors. By default, the message types are colored differently to make them easily distinguishable. In addition to normal messages, there is the PDBG for debugging purposes. It remains to be the only macro that prints the function name as message prefix and is meant for temporary messages, to be removed before finalizing the code.

Genode's on-demand-paging mechanism relies on the signalling framework. Each managed dataspace is assigned to a distinct signal context. Hence, signal contexts need to be created and disposed alongside with managed dataspaces. We complemented the signalling framework with a dissolve function to enable the destruction of signal contexts.

Operating-system services and libraries

Finished transition to new init concept

With the release 10.05, we introduced the current configuration concept of init. This concept supports mandatory access control and provides flexible ways for defining client-server relationships. Until now, we maintained the old init concept. With the current release, the transition to the new concept is finished and we removed the traditional init. We retained the support for loading configurations for individual subsystems from different files but adopted the syntax to the use of attributes. Instead of

 <configfile>subsystem.config</configfile>

the new syntax is

 <configfile name="subsystem.config"/>

Virtual network bridge (Proxy ARP)

Since we originally added networking support to Genode, only one program could use the networking facilities at a time. In the simplest form, such a program included the network driver, protocol stack, and the actual application. For example, the uIP stack featured with release 9.02 followed this approach. In release 9.11 we added the Nic_session interface to decouple the network driver from the TCP/IP protocol stack. But the 1-to-1 relation between application and network interface remained. With the current release, we introduce the nic_bridge server, which is able to multiplex the Nic_session interface.

The implementation is roughly based on the proxy ARP RFC 1027. At startup, the nic_bridge creates a Nic_session to the real network driver and, in turn, announces a Nic service at its parent. But in contrast to a network driver implementing this interface, nic_bridge supports an arbitrary number of Nic_sessions to be opened. From the client's perspective, such a session looks like a real network adaptor.

This way, it has become possible to run multiple TCP/IP stacks in parallel, each obtaining a distinct IP address via DHCP. For example, is has become possible to run multiple paravirtualized Linux kernels alongside an lwIP-based web browser, each accessing the network via a distinct IP address.

As a side effect for developing the nic_bridge, we created a set of utilities for implementing network protocols. The utilities are located at os/include/net and comprise protocol definitions for ethernet, IPv4, UDP, ARP, and DHCP.

Nitpicker GUI server

Our work on the Live CD motivated several improvements of the Nitpicker GUI server.

Alpha blending

In addition to nitpicker's plain pixel buffer interface that is compatible with a normal framebuffer session, each nitpicker session can now have an optional alpha channel as well as an corresponding input-mask channel associated. Both the alpha channel and the input mask are contained in the same dataspace as the pixel buffer. The pixel buffer is followed by the 8-bit alpha values, which are then followed by the input-mask values. This way, the presence of an alpha channel does not interfere with the actual pixel format. Each 8-bit input mask value specifies the user-input policy for the respective pixel. If the value is zero, user input referring to the pixel is not handled by the client but "falls through" the view that is visible in the background of the pixel. This is typically the case for drop shadows. If the input-mask value is 1, the input is handled by the client.

With the input-mask mechanism in place, we no longer have a definitive assignment of each pixel to a single client anymore. In principle, an invisible client is able to track mouse movements by creating a full-screen view with all alpha values set to 0 and all input-mask values set to 1. Once, the user clicks on this invisible view, the user input gets routed to the invisible client instead of the actually visible view. This security risk can be addressed at two levels:

  • In X-Ray mode, nitpicker completely disables alpha blending and the input-mask mechanism such that the user can identify the client that is responsible for each pixel on screen.

  • The use of the alpha channel is a session argument, which is specified by nitpicker clients at session-creation time. Consequently, this session argument is subjected to the policy of all processes involved with routing the session request to nitpicker. Such a policy may permit the use of an alpha channel only for trusted applications.

Caution: The use of alpha channels implies read operations from the frame buffer. On typical PC graphics hardware, such operations are extremely slow. For this reason, the VESA driver should operate in buffered mode when using alpha blending in Nitpicker.

Tinted views in X-Ray mode

We added support for tinting individual clients or groups of clients with different colors based on their label as reported at session-creation time. By using session colors, nitpicker assists the user to tell apart different security domains without reading textual information. In addition to the tinting effect, the title bar presents the session color of the currently focused session.

The following nitpicker configuration tints all views of the launchpad subsystem in blue except for those views that belong to the testnit child of launchpad. Those are tinted red.

 <config>
   <policy label="launchpad"            color="#0000ff"/>
   <policy label="launchpad -> testnit" color="#ff0000"/>
 </config>

Misc Nitpicker changes

We introduced a so-called stay-top session argument, which declares that views created via this session should stay on top of other views. This function is useful for menus that should always remain accessible or banner images as used for Live CD.

Nitpicker's reserved region at the top of the screen used to cover up the screen area as seen by the clients. We have now excluded this area from the coordinate system of the clients.

We implemented the kill mode that can be activated by the kill key. (typically this is the Print Screen key) This feature allows the user to select a client to be removed from the GUI. The client is not actually killed but only locked out. The kill mode is meant as an emergency brake if an application behaves in ways not wanted by the user.

ISO9660 server

As outlined in Section On-demand paging, we revisited the ISO9660 server to implement on-demand-paged dataspaces. It is the first real-world use case for Genode's user-level page-fault protocol. The memory pool to be used as backing store for managed dataspaces is dimensioned according to the RAM assigned to the iso9660 server. The server divides this backing store into blocks of 64KB and assigns those blocks to the managed dataspaces in a fifo fashion. We found that using a granularity of 64KB improved the performance over smaller block sizes because this way, we profit from reading data ahead for each block request. This is particularly beneficial for CDROM drives because of their extremely long seek times.

Audio mixer

We added a new channel synchronization facility to the Audio_out_session interface. An Audio_out_session refers to a single channel. For stereo playback, two sessions must be created. At session-creation time, the client can provide a hint about the channel type such as "front-left" as session-construction argument. This design principally allows for supporting setups with an arbitrary amount of channels. However, those channels must be synchronized. For this reason, we introduced the sync_session function to the Audio_out_session interface. It takes the session capability of another Audio_out_session as argument. The specified session is then used as synchronization reference.

To reduce the latency when stopping audio replay, we introduced a new flush function to the Audio_out_session interface. By calling this function, a client can express that it is willing to discard all audio data already submitted to the mixer.

Furthermore, we improved the audio mixer to support both long-running streams of audio and sporadic sounds. For the latter use case, low latency is particularly critical. In this regard, the current implementation is a vast improvement over the initial version. However, orchestrating the mixer with audio drivers as well as with different clients (in particular ALSA programs running on a paravirtualized Linux) is not trivial. In the process, we learned a lot, which will eventually prompt us to further optimize the current solution.

Nitpicker-based virtual Framebuffer

To support the browser-plugin demo, we introduced nit_fb, which is a framebuffer service that uses the nitpicker GUI server as back end. It is similar to the liquid framebuffer as featured in the demo repository but in contrast to liquid framebuffer, nit_fb is non-interactive. It has a fixed screen position and size. Furthermore, it does not virtualize the framebuffer but passes through the framebuffer portion of the nitpicker session, yielding better performance and lower latency.

If instantiated multiple times, nit_fb can be used to statically arrange multiple virtual frame buffers on one physical screen. The size and screen position of each nit_fb instance can be defined via Genode's configuration mechanism using the following attributes of the nit_fb config node:

 <config xpos="100" ypos="150"
         width="300" height="200"
         refresh_rate="25"/>

If refresh_rate isn't set, the server will not trigger any refresh operations by itself.

On the Live CD, each browser plugin instantiates a separate instance of nit_fb to present the plugin's content on screen. In this case, the view position is not fixed because the view is further virtualized by the loader, which imposes its policy onto nit_fb - Genode's nested policies at work!

TAR ROM service

For large setups, listing individual files as boot modules in single-image creation tools (e.g., elfweaver) or multiboot boot loaders can be cumbersome, especially when many data files or shared libraries are involved. To facilitate the grouping of files, tar_rom is an implementation of the ROM interface that operates on a tar file.

The name of the TAR archive must be specified via the name attribute of an archive tag, for example:

 <config>
   <archive name="archive.tar"/>
 </config>

The backing store for the dataspaces exported via ROM sessions is accounted on the rom_tar service (not on its clients) to make the use of rom_tar transparent to the regular users of core's ROM service. Hence, this service must not be used by multiple clients that do not trust each other. Typically, tar_rom is instantiated per client.

The Live CD uses the tar_rom service for the browser demo. Each plugin is fetched from the web as a tar file containing the config file of the plugin subsystem as well as supplemental binary files that are provided to the plugin subsystem as ROM files. This way, a plugin can carry along multiple components and data that form a complete Genode subsystem.

DDE Kit

The DDE kit underwent slight modifications since the previous release. It now provides 64-bit integer types and a revised virtual PCI bus implementation.

Device drivers

PCI bus

Genode was tested on several hardware platforms in preparation of the current release. This revealed some deficiencies with the PCI bus driver implementation. The revised driver now efficiently supports platforms with many PCI busses (as PCIe demands) and correctly handles multi-function devices.

VESA framebuffer

We updated the configuration syntax of the VESA driver to better match the style of new init syntax, preferring the use of attributes rather than XML sub nodes. Please refer to the updated documentation at os/src/drivers/framebuffer/vesa/README.

Buffered output

To accommodate framebuffer clients that need to read from the frame buffer, in particular the nitpicker GUI server operating with alpha channels, we introduced a buffered mode to the VESA driver. If enabled, the VESA driver will hand out a plain memory dataspace to the client rather than the physical framebuffer. Each time, the client issues as refresh operation on the framebuffer-session interface, the VESA driver copies the corresponding screen region from the client-side virtual framebuffer to the physical framebuffer. Note that the VESA driver will require additional RAM quota to allocate the client buffer. If the quota is insufficient, the driver will fall back to non-buffered output.

Preinitialized video modes

As an alternative to letting the VESA driver set up a screen mode, the driver has become able to reuse an already initialized mode, which is useful if the VESA mode is already initialized by the boot loader. If the screen is initialized that way, the preinit attribute of the config node can be set to "yes" to prevent the driver from changing the mode. This way, the driver will just query the current mode and make the already initialized framebuffer available to its client.

Audio

We observed certain hardware platforms (in particular VirtualBox) to behave strangely after ALSA buffer-underrun conditions. It seems that the VirtualBox audio driver plays actually more frames than requested by ALSA's writei function, resulting in recurring replay of data that was in the buffer at underrun time. As a work-around for this problem, we zero-out the sound-hardware buffer in the condition of an ALSA buffer underrun. This way, the recurring replay is still there, but it is replaying silence.

To improve the support for sporadic audio output, we added a check for the PCM state for buffer underruns prior issuing the actual playback. In the event of an underrun, we re-prepare the sound card before starting the playback.

Furthermore, we implemented the new flush and channel-synchronization abilities of the Audio_out_session interface for the DDE Linux driver.

Paravirtualized Linux

To support the demo scenarios that showcase the paravirtualized Linux kernel, we enhanced our custom stub drivers of the OKLinux kernel. Thereby, we have reached a high level of integration of OKLinux with native Genode services, including audio output, block devices, framebuffer output, seamless integration with the Nitpicker GUI, and networking. All stub drivers are compiled in by default and are ready to use by specifying a device configuration in the config node for the Linux kernel. This way, one Linux kernel image can be easily used in different scenarios.

Integration with the Nitpicker GUI

We enhanced our fbdev stub driver with a mechanism to merge view reposition events. If a X11 window is moved, a lot of subsequent events of this type are generated. Using the new optimization, only the most recent state gets reported to Nitpicker, making the X11 GUI more responsive.

UnionFS

As we noticed that unionfs is required by all our Linux scenarios, we decided to include and enable the patch by default.

Network support

With the introduction of the nic_bridge, multiple networking stacks can run on Genode at the same time, which paves the way for new use cases. We have now added a stub driver using Genode's Nic_session interface to make the new facility available to Linux.

Audio output

We adapted the ALSA stub driver to the changes of the Audio_out_session interface, using the new channel synchronization and flush functions. Thereby, we optimized the stub driver to keep latency and seek times of Linux userland applications reasonably low.

Removed ROM file driver

With the addition of the Block_session stub driver, the original ROM file driver is no longer required. So we removed the stub. For using ROM files as disk images for Linux, there is the rom_loopdev server, which provides a block session that operates on a ROM file.

Asynchronous block interface

To improve performance, we changed the block stub driver to facilitate the asynchronous mode of operation as provided by the Block_session interface. This way, multiple block requests can be issued at once, thereby shadowing the round trip times for individual requests.

Protocol stacks and libraries

Gallium3D / Intel GEM

We improved the cache handling of our DRM emulation code (implementing drm_clflush_pages) and our EGL driver, thereby fixing caching artifacts on i945 GPUs. Furthermore, we added a temporary work-around for the currently dysfunctional sequence-number tracking with i945 GPUs. On this chipset, issuing the MI_STORE_DWORD_INDEX GPU command used for tracking sequence numbers apparently halts the processing the command stream. This condition is normally handled by an interrupt. However, we have not enabled interrupts yet.

To prepare the future support for more Gallium drivers than i915, we implemented a driver-selection facility in the EGL driver. The code scans the PCI bus for a supported GPU and returns the name of the corresponding driver library. If no driver library could be found, the EGL driver falls back to softpipe rendering.

lwIP

We revised our port of the lwIP TCP/IP stack, and thereby improved its stability and performance.

  • The lwIP library is now built as shared object, following the convention for libraries contained in the libports repository.

  • By default (when using the libc_lwip_nic_dhcp library), lwIP will issue a DHCP request at startup. If this request times out, the loopback device is set as default.

  • If there is no Nic service available, the lwIP stack will fall back to the loopback device.

  • We increased the default number of PCBs in lwIP to 64.

  • We removed a corner case of the timed semaphore that could occur when a timeout was triggered at the same time ,'up' was called. In this case, the semaphore was unblocked but the timeout condition was not reflected at the caller of down. However, the lwIP code relies on detecting those timeouts.

Qt4

We implemented a custom nitpicker plugin widget, which allows for the seamless integration of arbitrary nitpicker clients into a Qt4 application. The primary use case is the browser plugin mechanism presented at the Live CD. In principle, the QNitpickerViewWidget allows for creating mash-up allocations consisting of multiple native Genode programs. As shown by the browser plugin demo, a Qt4 application can even integrate other programs that run isolated from the Qt4 application, and thereby depend on on a significantly less complex trusted computing base than the Qt4 application itself.

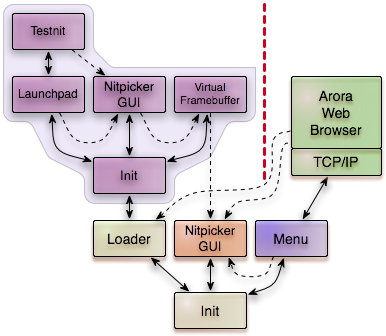

The image above illustrates the use of the QNitpickerViewWidget in the scenario presented on the Live CD. The browser obtains the Nitpicker view to be embedded into the website from the loader service, which virtualizes the Nitpicker session interface for the loaded plugin subsystem. The browser then tells the loader about where to present the plugin view on screen. But it has neither control over the plugin's execution nor can it observe any user interaction with the plugin.

New Gems repository with HTTP-based block server

To give the web-browser demo of our Live CD a special twist, and to show off the possibilities of a real multi-server OS, we decided to implement the somewhat crazy idea of letting a Linux OS run on a disk image fetched at runtime from a web server. This way, the Linux OS would start right away and disk blocks would be streamed over the network as needed. Implementing this idea was especially attractive because such a feature would be extremely hard to implement on a classical OS but is a breeze to realize on Genode where all device drivers and protocol stacks are running as distinct user-level components. The following figure illustrates the idea:

The block stub driver of the Linux kernel gets connected to a special block driver called http_block, which does not access a real block device but rather uses TCP/IP and HTTP to fetch disk blocks from a web server.

Because the http_block server is both user of high-level functionality (the lwIP stack) and provider of a low-level interface (Block_session), the program does not fit well into one of the existing source-code repositories. The os repository, which is normally hosting servers for low-level interfaces is the wrong place for http_block because this program would make the os repository depend on the higher-level libports repository where the lwip stack is located. On the other hand, placing http_block into the libports repository is also wrong because the program is not a ported library. It merely uses libraries provided by libports. In the future, we expect that native Genode components that use both low-level and high-level repositories will become rather the norm than an exception. Therefore, we introduced a new repository called gems for hosting such programs.

Tools

Automated coding-style checker

As Genode's code base grows and new developers start to get involved, we noticed recurring questions regarding coding style. There is a document describing our coding style but for people just starting to get involved, adhering all the rules can become tedious. However, we stress the importance of a consistent coding style for the project. Not only does a consistent style make the framework more approachable for users, but it also eases the work of all regular developers, who can feel right at home at any part of the code.

To avoid wasting precious developer time with coding-style fixes, we have created a tool for the automated checking and (if possible) fixing the adherence of source code to Genode's coding style. The tool is located at tool/beautify. It takes a source file as argument and reports coding-style violations. The checks are fairly elaborative:

  • Placement of braces and parenthesis

  • Indentation and alignment, trailing spaces

  • Vertical spacing (e.g., between member functions, above comments)

  • Naming of member variables and functions (e.g., private members start with _)

  • Use of upper and lower case

  • Presence of a file header with the mandatory fields

  • Policy for function-header comments (comment at declaration, not at implementation)

  • Style of single-line comments, function-header comments, multi-line comments

The user of beautify may opt to let the tool fix most of the violations automatically by specifying the command line arguments -fix and -write. With only the -fix argument, the tool will output the fixed version of the code via stdout. By specifying the -write argument, the changes will be written back to the original file. In any case, we strongly recommend to manually inspect all changes made by the tool.

Under the hood, the tool consists of two parts. A custom C++ parser called parse_cxx reads the source code and converts it to a syntax tree. In the syntax tree, all formating information such as whitespaces are preserved. The C++ parser is a separate command-line tool, which we also use for other purposes (e.g., generating the API documentation at the website). The actual beautify tool calls parse_cxx, and applies its checks and fixes to the output of parse_cxx. For this reason, both tools have to reside in the same directory.

Platform-specific changes

OKL4

Added support for shared interrupts

The Genode Live CD operates on a large number of devices that trigger interrupts (USB, keyboard, mouse, ATAPI, timer, network). On most platforms, the chances are extremely high that some of them use the same IRQ line. Therefore, we enhanced core's IRQ service to allow multiple clients to request the same IRQ. If the interrupt occurs, all clients referring to this interrupt are notified. The interrupt gets cleared after all of those clients responded. Even though, we regard PIC interrupts as a legacy, the support of shared interrupts enables us to use OKL4 with such complex usage scenarios.

Revised page-fault handling

If a page fault occurs, the OKL4 kernel delivers a message to the page-fault handler. The message contains the page-fault address and type as well as the space ID where the fault happened. However, the identity of the faulting thread is not delivered. Instead, the sender ID of the page fault message contains the KTCB index of the faulting thread, which is only meaningful within the kernel. This KTCB index is used as a reply token for answering the page fault message. We wondered about why OKL4 choose to deliver the KTCB index rather then the global thread ID as done for plain IPC messages. The only reasonable answer is that by using the KTCB index directly in OKL4's page-fault protocol, one lookup from the userland-defined thread ID to the KTCB index can be avoided. However, this comes at the cost of losing the identity of the faulting thread. We used to take the space ID as a key for the fault context within core. However, with Genode's user-level page-fault mechanism, this simplification does not suffice anymore. We have to know the faulting thread as a page fault may not be answered immediately but at a later time. During that time, the page-fault state has to be stored at core's representation of the faulting thread. Our solution is reverting OKL4's page-fault protocol to operate with global thread IDs only and to never make kernel-internal KTCB indices visible at the user land. You can find the patch for the OKL4 kernel at base-okl4/patches/reply_tid.patch.

Reboot via kernel debugger

We fixed the reboot code of OKL4's kernel debugger to improve our work flow. The patch can be found at base-okl4/patches/kdb_reboot.patch.

Relieved conflict with libc limits.h

For some reason, the OKL4 kernel bindings provide definitions normally found in libc headers. This circumstance ultimately leads to trouble when combining OKL4 with a real C runtime. We have relieved the problem with the patch base-okl4/patches/char_bit.patch.

Exception handling

We added a diagnostic message to core that reports about exceptions such as division by zero.

Pistachio

Our revised syscall bindings for supporting position-independent code on L4ka::Pistachio have been integrated into the mainline development of the kernel. Therefore, the patch is not needed anymore when using a kernel revision newer than r791:0d25c1f65a3a.

Linux

On Linux, we let the kernel manage all virtual address spaces for us, except for the thread-context area. Because the kernel does not know about the special meaning of the thread-context area, it may choose to use this part of the virtual address space as target for mmap. This may lead to memory corruption. Fortunately, there is a way to tell the kernel about virtual address regions that should be reserved. The trick is to pre-populate the said region with anonymous memory using the mmap arguments MAP_PRIVATE, MAP_FIXED, MAP_ANONYMOUS, and PROT_NONE. The kernel will still accept a fixed-address mapping within such a reserved region (overmap) but won't consider using the region by itself. The reservation must be done at the startup of each process and each time when detaching a dataspace from the thread context area. For the process startup, we use the hook function main_thread_bootstrap in src/platform/_main_helper.h. For reverting detached dataspaces to a reserved region within the context area, we added as special case to src/base/env/rm_session_mmap.cc. For hybrid programs (Genode processes that link against native shared libraries of the Linux system), which are loaded by the dynamic linker of Linux, we must further prevent the dynamic linker from populating the thread-context area. This is achieved by adding a special program segment at the linking stage of all elf binaries.
